Humminbird HB2124 CHIRP Radar [750013 - 1], Radars, Humminbird, , , at Festive Water Paddlesports

Humminbird HB2124 CHIRP Radar [750013-1]

$1,999.99 USD$0.00 USD
Authorized Humminbird Dealer
Kayak shipping available, rates calculated at checkout.
Questions? Call our experts at 404-422-9569.
Logo for GOVX ID, a service used to verify military, first responder, nurse or teachers to qualify them for discounts

Discount available for Military, First Responders, Medical Workers and Teachers

Quantity

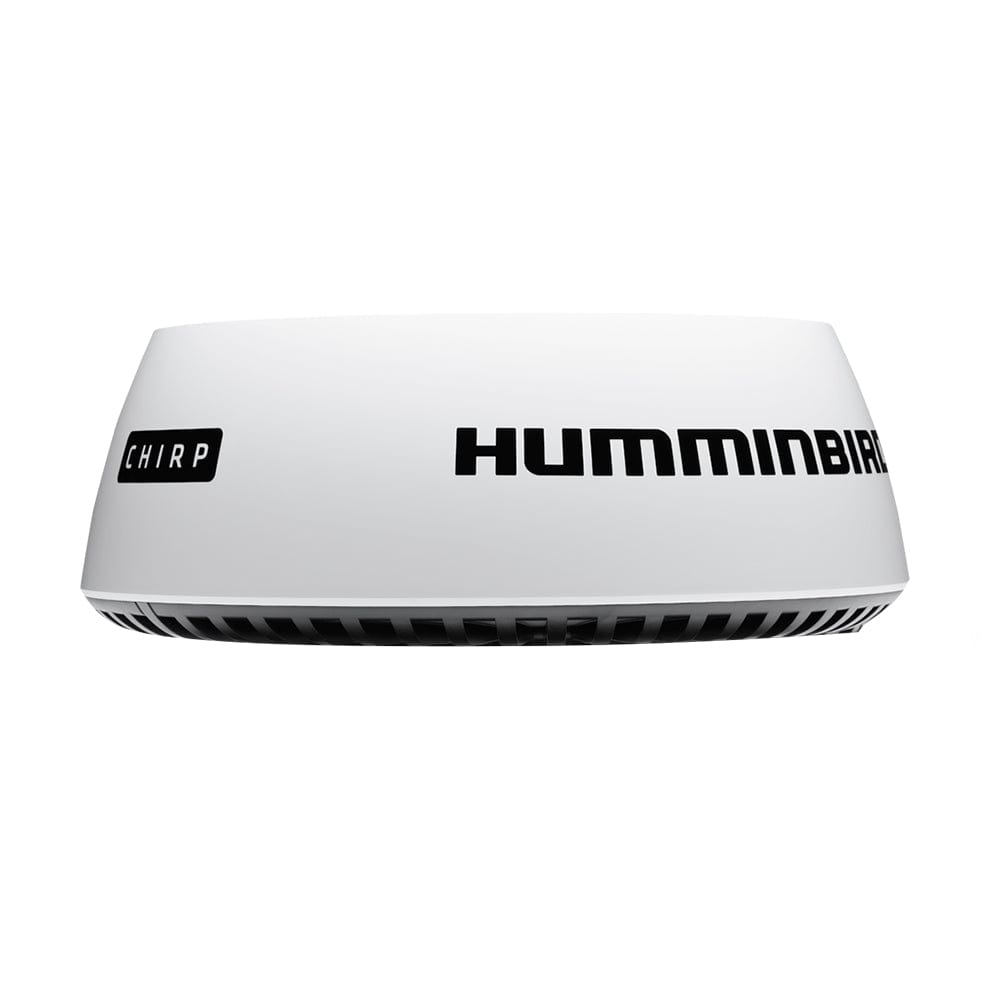

HB2124 CHIRP Radar

Compatible with select networking HELIX models and ONIX, Humminbird CHIRP Radar features CHIRP pulse compression, setting a new standard for compact solid state radar. It delivers superior RADAR imaging on both long and extremely short ranges. This translates to better situational awareness in low-visibility conditions and helps identify birds and floating obstacles for clues to where gamefish are located. You can also track weather and vessels with amazing definiton.

Features:

  • Antenna Dimension - 21" Enclosed Dome
  • Antenna Type - Patch Array
  • Peak Power Output - 20W
  • Transmit Frequency - 9354 to 9446 MHz
  • Beam width (nominal) - 4.9° Horizontal and 20° Vertical
  • Input Voltage - 12 or 24 VDC (Miniumum - 10.8 Volts, Maximum - 31.2 Volts)
  • Networking - Ethernet
  • Maximum Range Scale - from 1/16 to 24 nautical miles
  • Power Consumption - Transmit mode - 17W; Standby Mode - 7W; Sleep Mode - 2W
  • Duplexer - Circulator
  • Pulse Widths @ 3 dB - 40 ns to 14.7µs
  • CHIRP Lengths - 400 ns to 20µs
  • CHIRP Bandwidth - Up to 32 MHz
  • IF Bandwidth - 26 MHz
  • Noise - Less than 4 dB
  • Polarization - Horizontal
  • Waterproofing - IPX6
  • Weight - 12.3 lbs (5.6 kg)
  • Compatibility Networking HELIX models and all ONIX models

Specifications:

  • Array Size (Inches): 21"
  • Box Dimensions: 12"H x 24"W x 24"L WT: 21.2 lbs
  • UPC: 082324050169

Owner's Manual (pdf)
