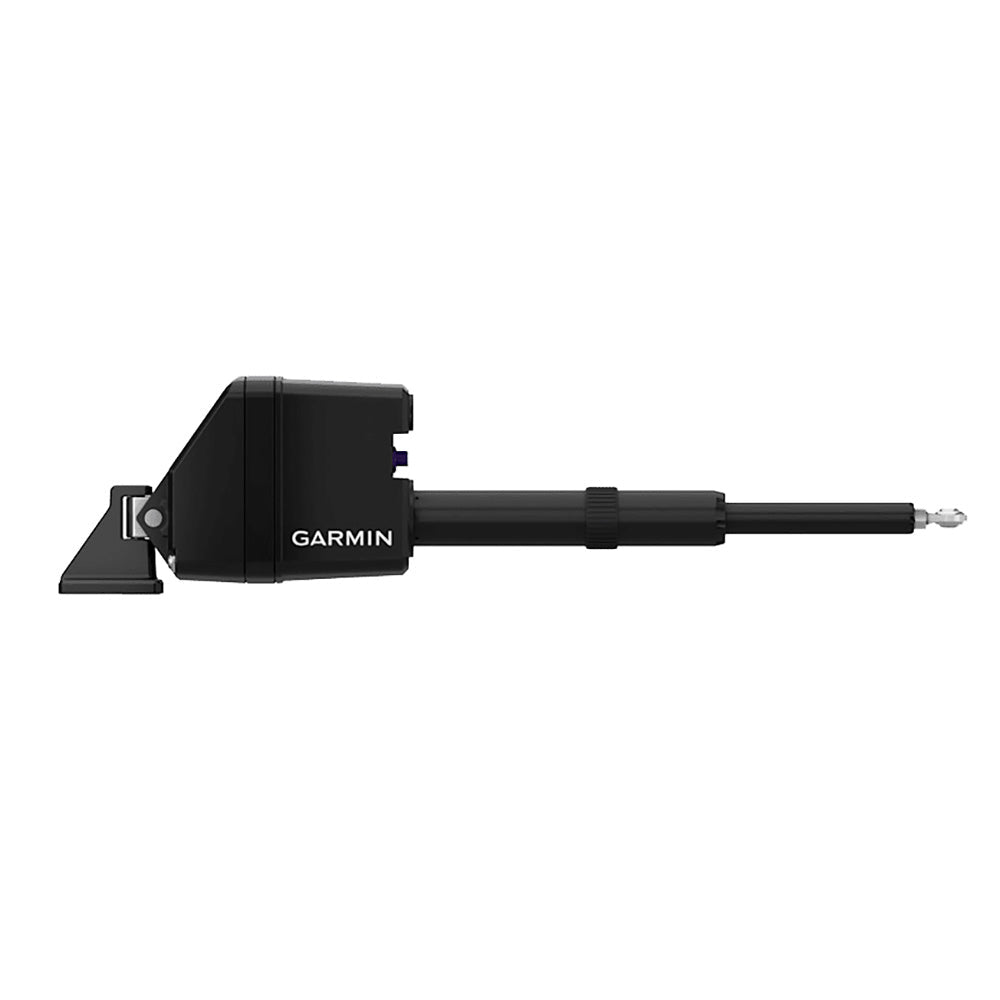

Garmin SmartDrive Autopilot Actuator f/Sailboats [010-02794-12]
Current Stock
0 in stock
We can drop ship out of stock items. A drop shipping service fee will apply. Please call or email for a quote.
SmartDrive™ Autopilot Actuator for Sailboats
The Reactor 40 sail corepack with SmartDrive actuator is the first sailboat autopilot to use a brushless linear actuator with a built-in ECU. Get precise rudder awareness with minimal mechanical wear.
Features:
- BUILT-IN ECU FULLY ENGINEERED AND MADE BY GARMIN
- PREMIUM AUTOPILOT PERFORMANCE WITH MAXIMUM THRUST UP TO 1,050 LBS
- CONTACTLESS RUDDER POSITION SENSOR FOR SUPERIOR RELIABILITY AND FEWER MOVING PARTS
- SIMILAR FORM FACTOR TO OTHER ACTUATORS ALLOWS EASY REPLACEMENT FOR RETROFIT
- USER-ADJUSTABLE MAX FORCE OUTPUT SUITS A WIDE RANGE OF VESSELS
- MORE ACCURATE TACK AND GYBE WITH ADJUSTABLE SPEED, AUTO RESPONSE, AND IMPROVED UPWIND HOLD
FITS YOUR VESSEL
The brushless linear actuator is suitable for a wide range of sailboats and catamarans (up to 45 feet/maximum 33,000 lbs displacement).
SMARTDRIVE ACTUATOR
This product is the first sailboat autopilot to use a brushless DC motor with a built-in ECU to provide superior performance and simplified installation.
Specifications:
- Drive unit type: Mechanical linear
- Maximum boat displacement: 33,000 lbs (15,000 kg)
- Stroke length: 12" (300 mm)
- Maximum thrust (adjustable software setting): High: 1050 lbs (476 kg), Medium: 600 lbs (272 kg), Low: 400 lbs (181 kg)
- Dimensions, including base, mid-stroke (WxHxD): 4.5" x 7.75" x 27.6" (114 x 197 x 700 mm)
- Weight: 19.8 lbs (9 kg)
- Supply voltage: 10 to 32 Vdc
- Average typical current at 12 V: 0.8 to 5 A, depending on conditions
- Peak momentary current: 25 A
- Lock-to-lock time: 11 seconds
- Operating temperature: -20° to 55° C (-4° to 131° F)
- Water ingress: IPX7
In The Box:
- SmartDrive™ actuator
- Mounting hardware
- Documentation
