Blue Sea 8120 - 5 Position 12V Panel w/Dual USB 12V Socket [8120], Electrical Panels, Blue Sea Systems, , , at Festive Water Paddlesports

Blue Sea 8120 - 5 Position 12V Panel w/Dual USB 12V Socket [8120]

$584.99 USD$813.99 USD
Authorized Blue Sea Systems Dealer
Kayak shipping available, rates calculated at checkout.
Questions? Call our experts at 404-422-9569.
Logo for GOVX ID, a service used to verify military, first responder, nurse or teachers to qualify them for discounts

Discount available for Military, First Responders, Medical Workers and Teachers

Quantity

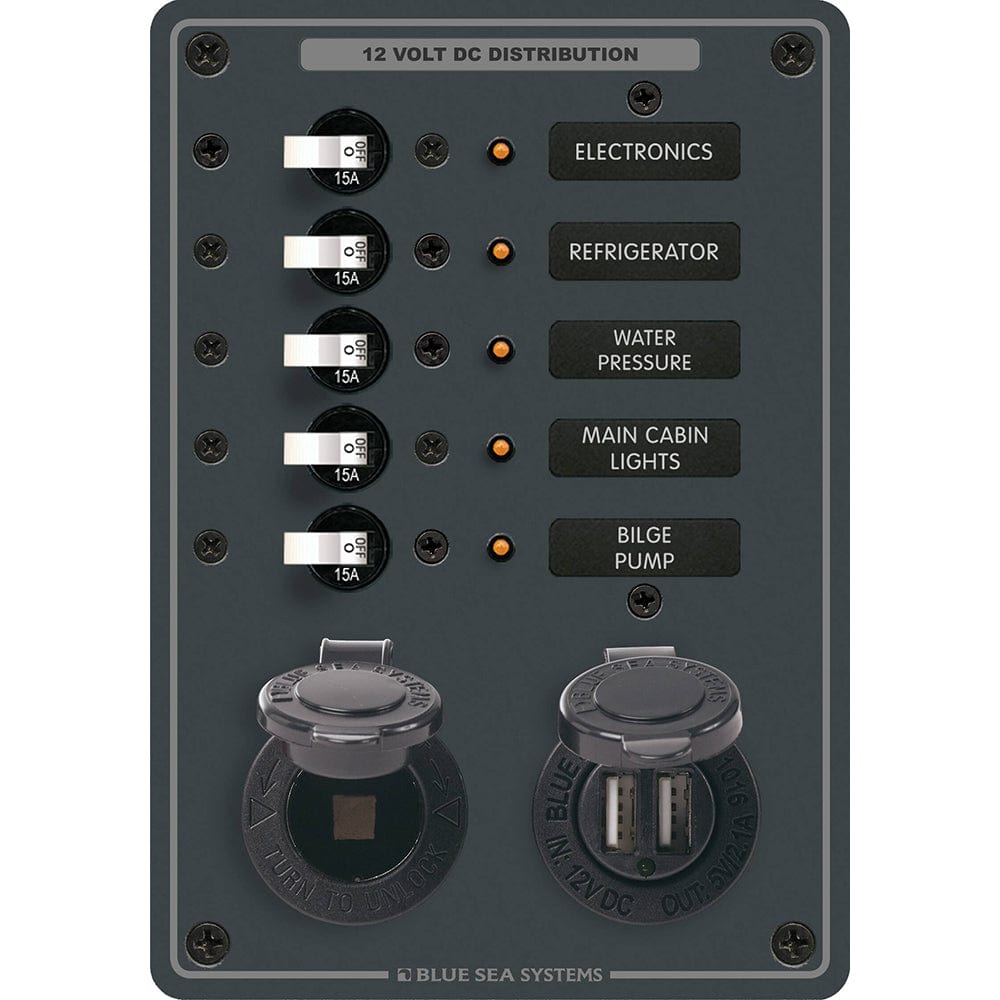

8120 - 5 Position 12V Panel w/Dual USB & 12V Socket

Part of the Blue Sea Systems Battery Management Panels.  Distribute current from a high amperage source to lower amperage circuits.

Features:

  • ON-indicating LEDs
    • Backlit label positions
  • All positive, negative, and grounding buses installed, fully pre-wired

Specifications:

  • Positions - Five (5)
  • Nominal Voltage - 12V DC
  • Maximum Amperage - 50A
  • Circuit Breaker Type - Magnetic Hydraulic - Trip Free
  • USB Output - 12/24V Dual USB
  • Socket Output - 12V Dash socket
  • Dimensions (H x W x D) - 7.5" x 5.25" x 2.5" (191 x 133 x 64mm)

In the Box:

  • 8120 Panel
  • Instruction Manual

*Sold as an Individual

Specifications:

  • AC/DC: DC
  • Max Breaker Quantity: 5
  • Voltage: 12
  • Box Dimensions: 5"H x 7"W x 12"L WT: 1.95 lbs
  • UPC: 632085081201

Owner's Manual (pdf)
