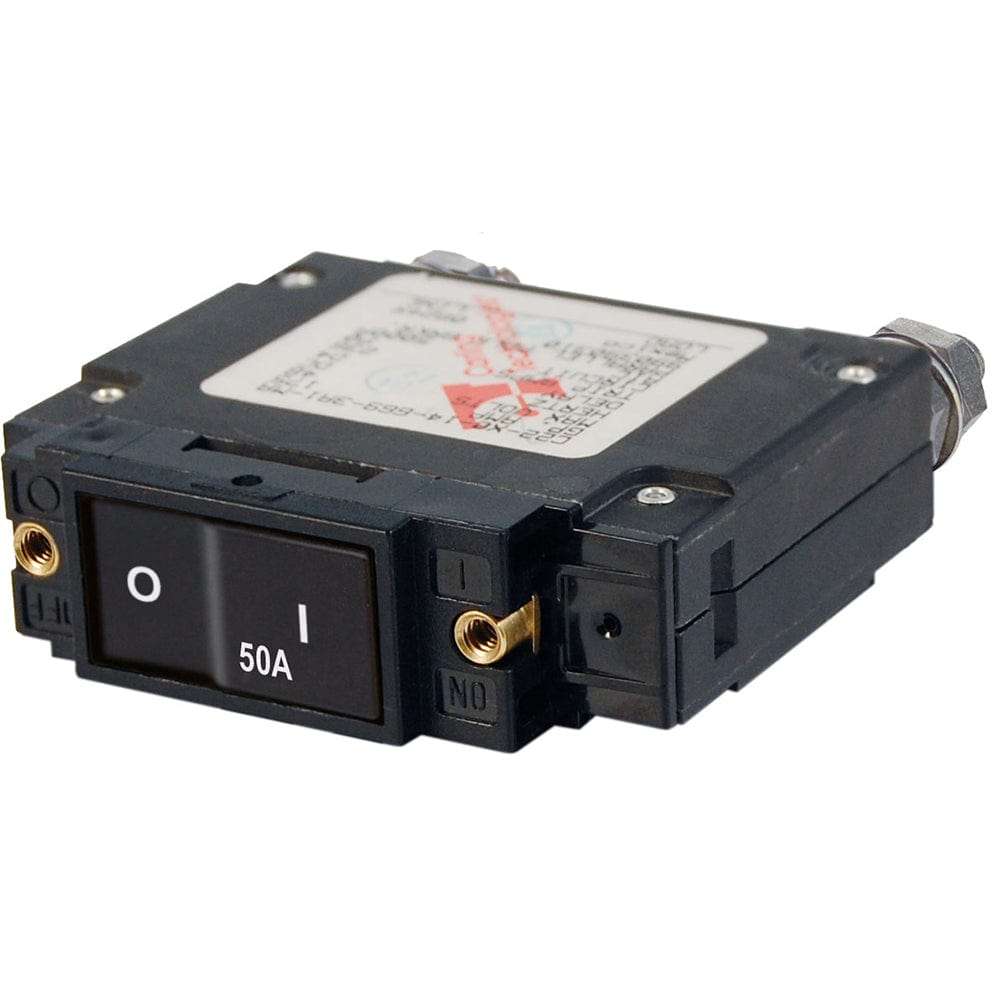

Blue Sea 7546 C-Series Flat Rocker Circuit Breaker - Single Pole - 50A [7546]

$48.99 USD$67.99 USD
Authorized Blue Sea Systems Dealer
Kayak shipping available, rates calculated at checkout.
Questions? Call our experts at 404-422-9569.
Logo for GOVX ID, a service used to verify military, first responder, nurse or teachers to qualify them for discounts

Discount available for Military, First Responders, Medical Workers and Teachers

Quantity

C-Series Flat Rocker Circuit Breaker - Single Pole - 50A

Features:

  • Rocker actuator is flush in the "ON" position, eliminating the risk of accidential switching
  • Color actuator indicates "OFF" position
  • Provides overcurrent protection for inverters, bow thrusters, and windlasses
  • Combines switching and circuit protection into a single device
  • "Trip Free" - cannot be held closed after trip
  • Ignition protectedsafe for installation aboard gasoline powered boats


Specifications:
  • Amperage: 50A AC / 50A DC
  • Actuator Style: Flat Rocker
  • Poles: 1
  • Maximum Voltage: 240V AC / 48V DC
  • Circuit Breaker Type: Magnetic Hydraulic - trip free
  • Terminal Stud Torque: 35 in-lb (3.95 Nm)
  • Interrupt Capacity: 3000A @ 120V AC / 3500A @ 240V AC / 5000A @ 32V DC
  • Minimum Operating Temperature: -40° C
  • Maximum Operating Temperature: 85° C
  • Mounting Screw: #6-32 Stainless Steel
  • Mounting Screw Torque: 6 in-lb (0.68 Nm)
  • Switching Cycles: 10000
  • Terminal Stud: 1/4-20 Tin-Plated Brass
  • Weight: 0.38lb (0.17 kg)

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

  • Amperage: 50a
  • Box Dimensions: 2"H x 2"W x 4"L WT: 0.4 lbs
  • UPC: 632085075460
