Blue Sea 7049 200 Amp Panel Mount 187 Series Circuit Breaker [7049], Circuit Breakers, Blue Sea Systems, , , at Festive Water Paddlesports

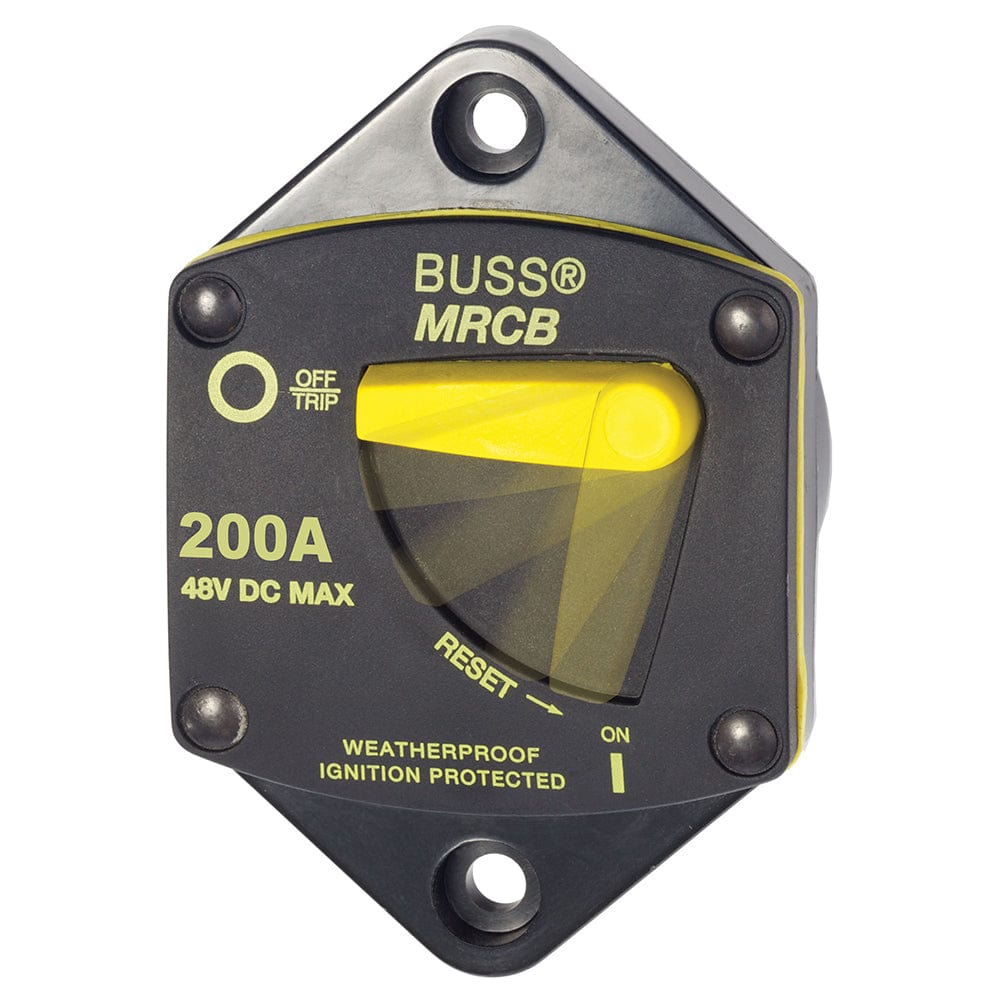

Blue Sea 7049 200 Amp Panel Mount 187 Series Circuit Breaker [7049]

$131.99 USD$185.99 USD
Authorized Blue Sea Systems Dealer
Kayak shipping available, rates calculated at checkout.
Questions? Call our experts at 404-422-9569.
Logo for GOVX ID, a service used to verify military, first responder, nurse or teachers to qualify them for discounts

Discount available for Military, First Responders, Medical Workers and Teachers

Quantity

7049 200 Amp Panel Mount 187 Series Circuit Breaker

Features:

  • Combines switching and circuit protection into a single device*
  • Clear, single lever operation
  • "Trip Free" design cannot be held "ON" during fault current condition
  • Waterproof
  • Recessed mounting holes for clean appearance
  • Large Clearance around terminal studs accecpt heavy gauge wire lugs
  • Robust 5/16 M8 terminals provide high torque connections
  • Large lever with vertical/horizontal orientation provides indication of trip status
  • Ignition protected - Safe for installation aboard gasoline powered boats


Specifications:
  • Interrupt Rating - 5,000 A@12V DC, 3,000A@24V DC, 1,500A@42V DC
  • Maximum Voltage Rating - 48 Volts DC
  • Operating Temperature Range - -40xC to 85xC
  • Circuit Breaker Type - Thermally responsive bi-metal blade
  • Circuit Breaker Class - Type III - switchable/manual reset - trip free
  • Terminal Stud Size - 5/16"-18
  • Terminal Stud Torque - 75 in-lb
  • Mounting Holes - Accept #10 (M5) Screw
  • Weight Lb (Kg) - 0.50 (0.23)
  • Case Material - Thermoset Polyester

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

  • Amperage: 200a
  • Box Dimensions: 3"H x 5"W x 8"L WT: 0.5 lbs
  • UPC: 632085070496
