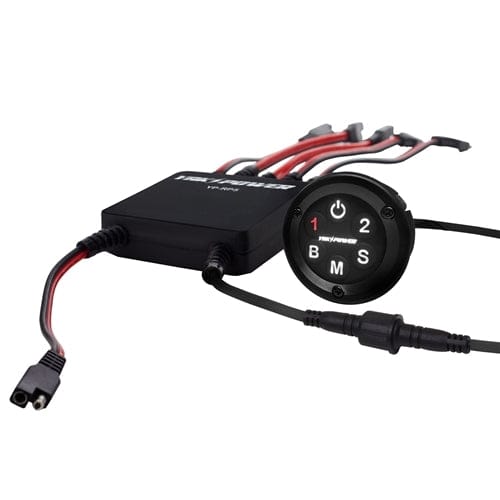

YP-RP5R Five Circuit Power Panel Switching System
- Easily add and control 12-volt electronics on your kayak

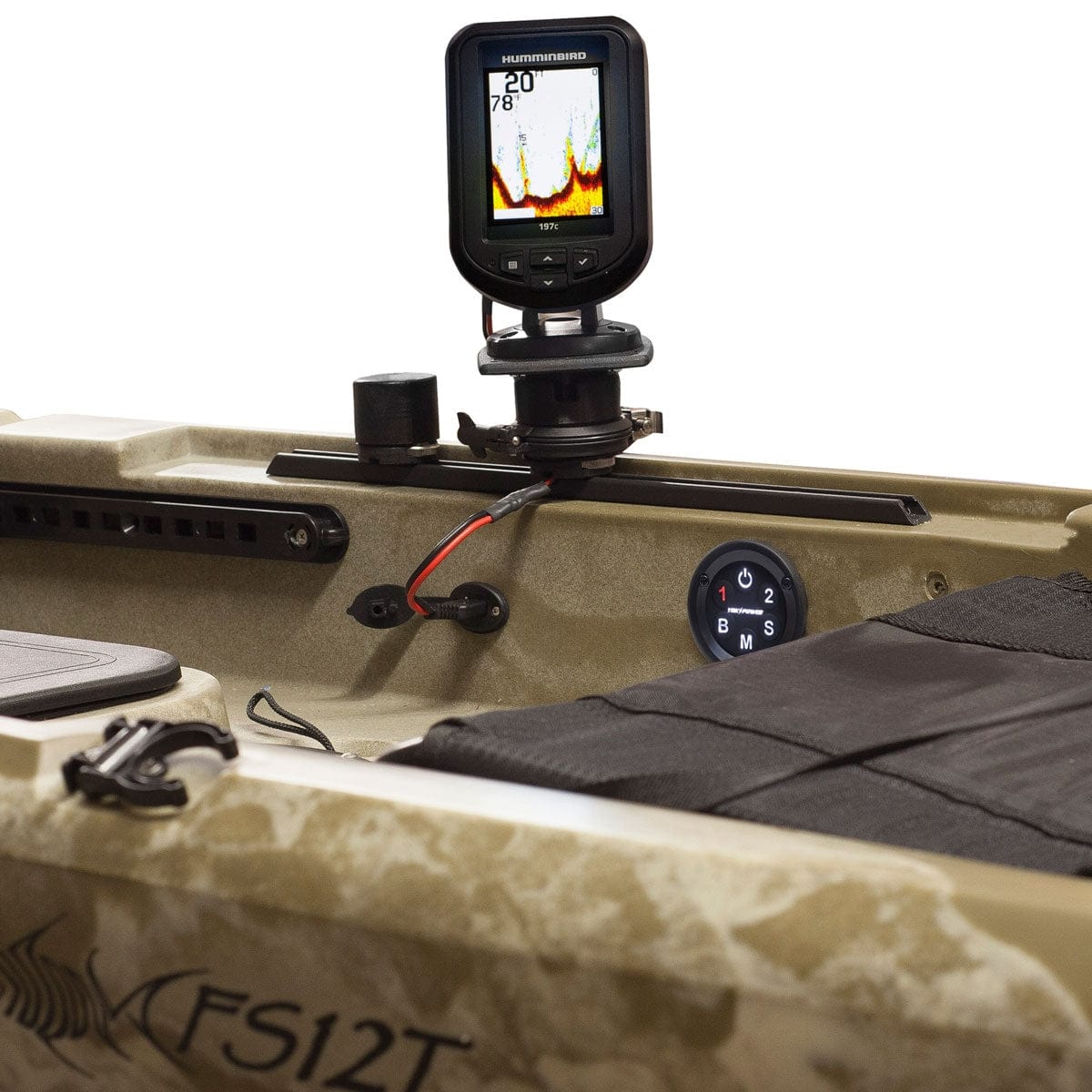

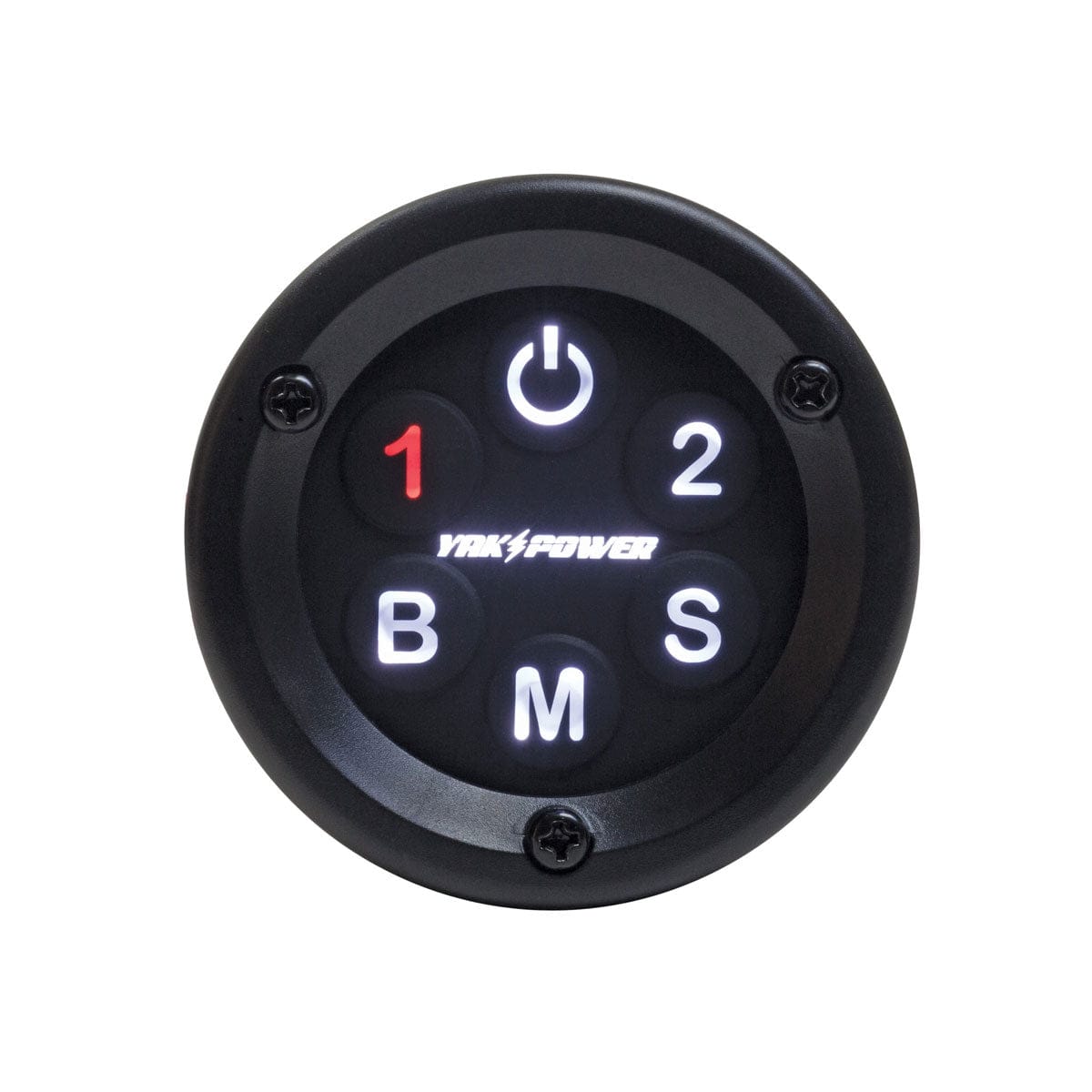

- Waterproof, illuminated control panel
- Master power button

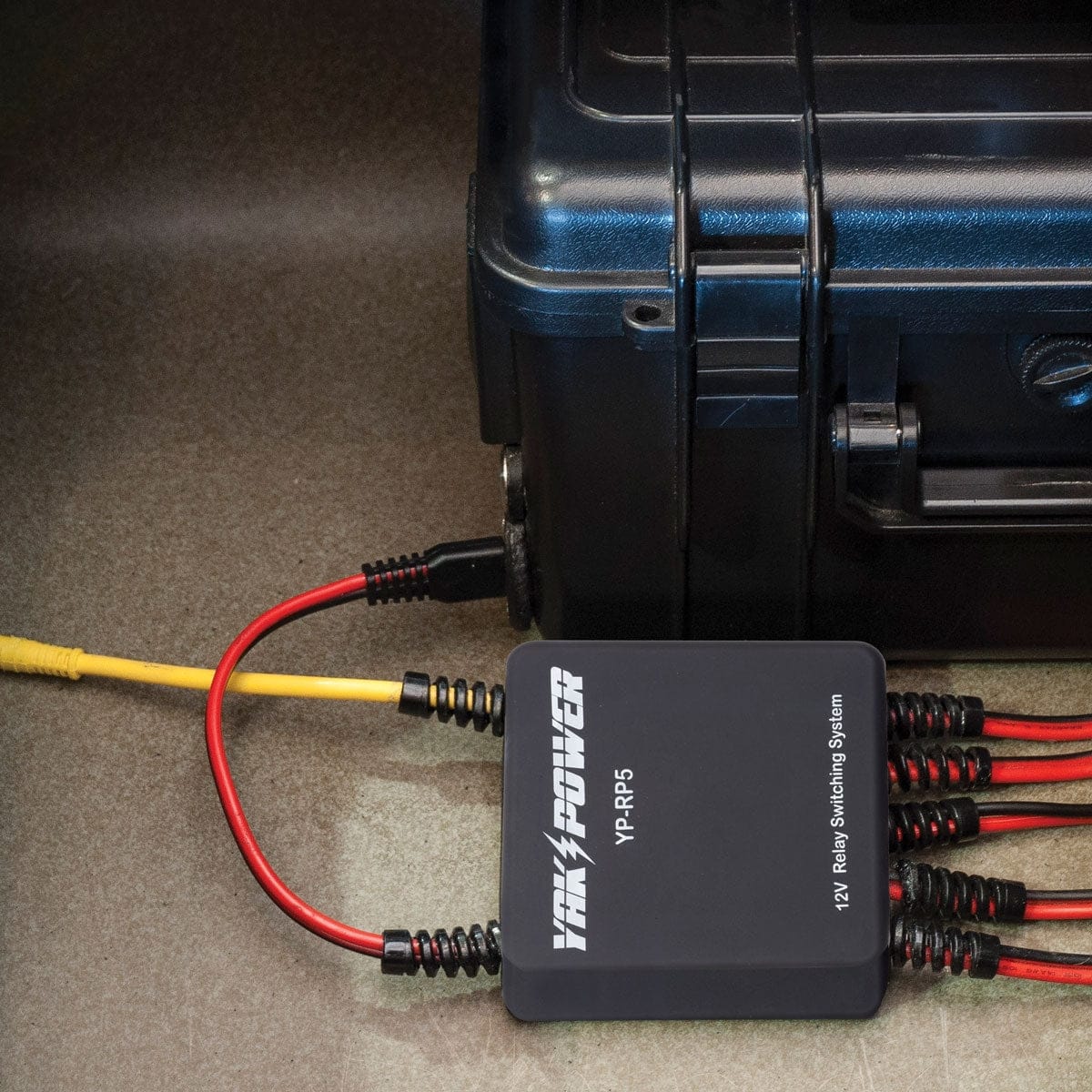

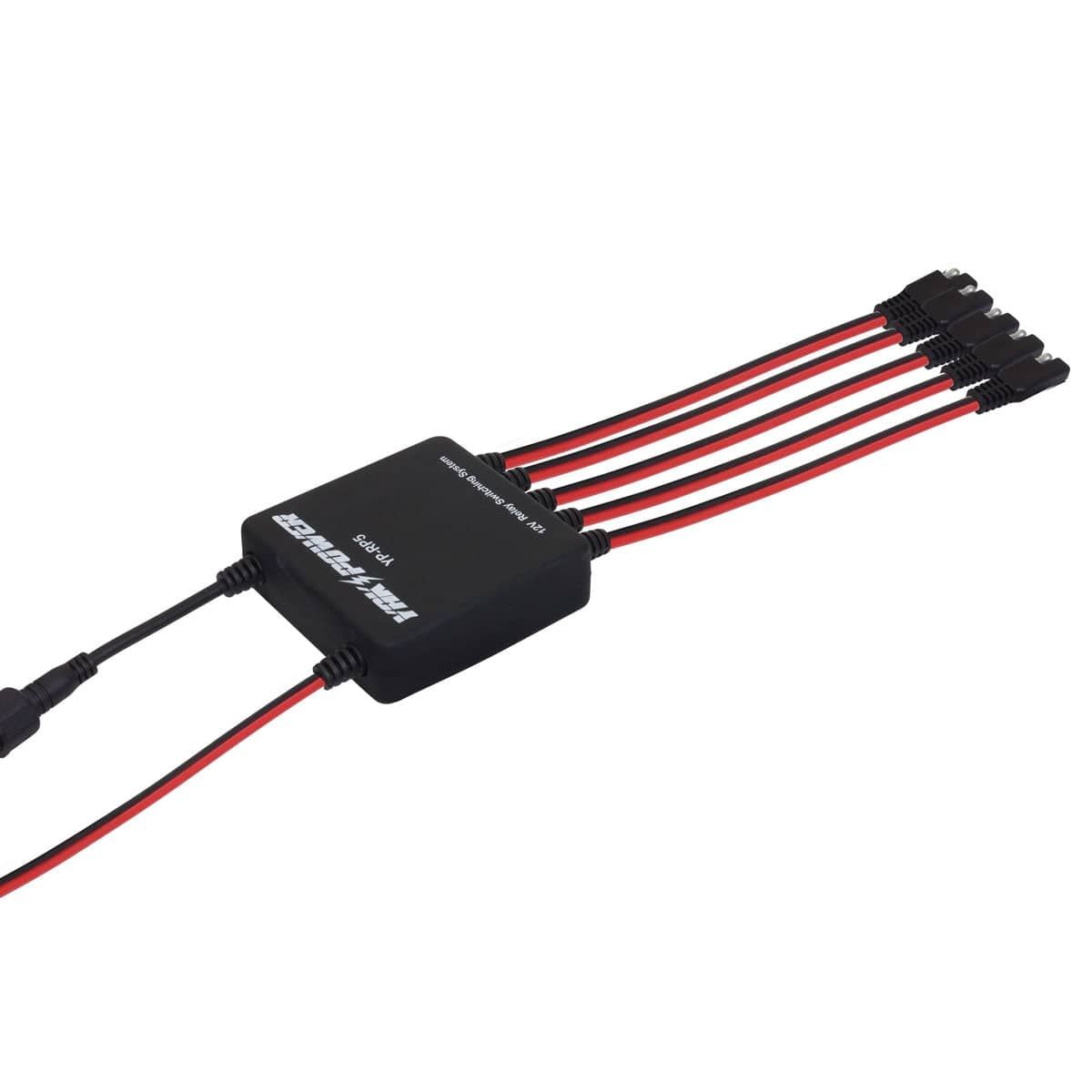

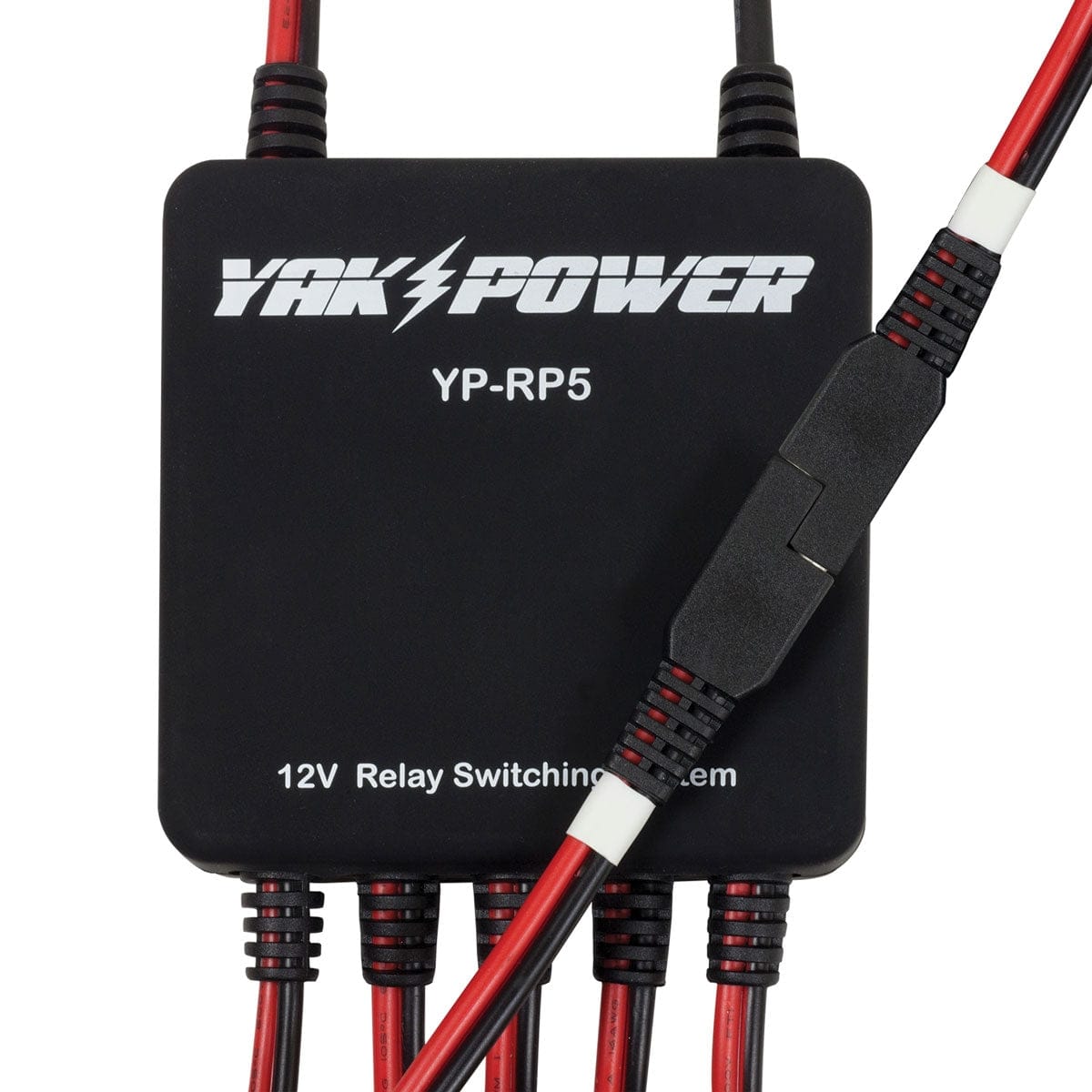

- Waterproof 5-Outlet Relay Switching Module (bow, mid-ship, stern, ACC 1, ACC 2)
- No cutting or splicing required
- Designed for 15 amps total current draw
- Optional Wireless Compatibility with all Lowrance HDS Live, HDS Pro, and Elite FS series graphs (requires YP-RP5-RFBTM in line remote module sold separately and the new software release from Lowrance expected in Q1 2025)

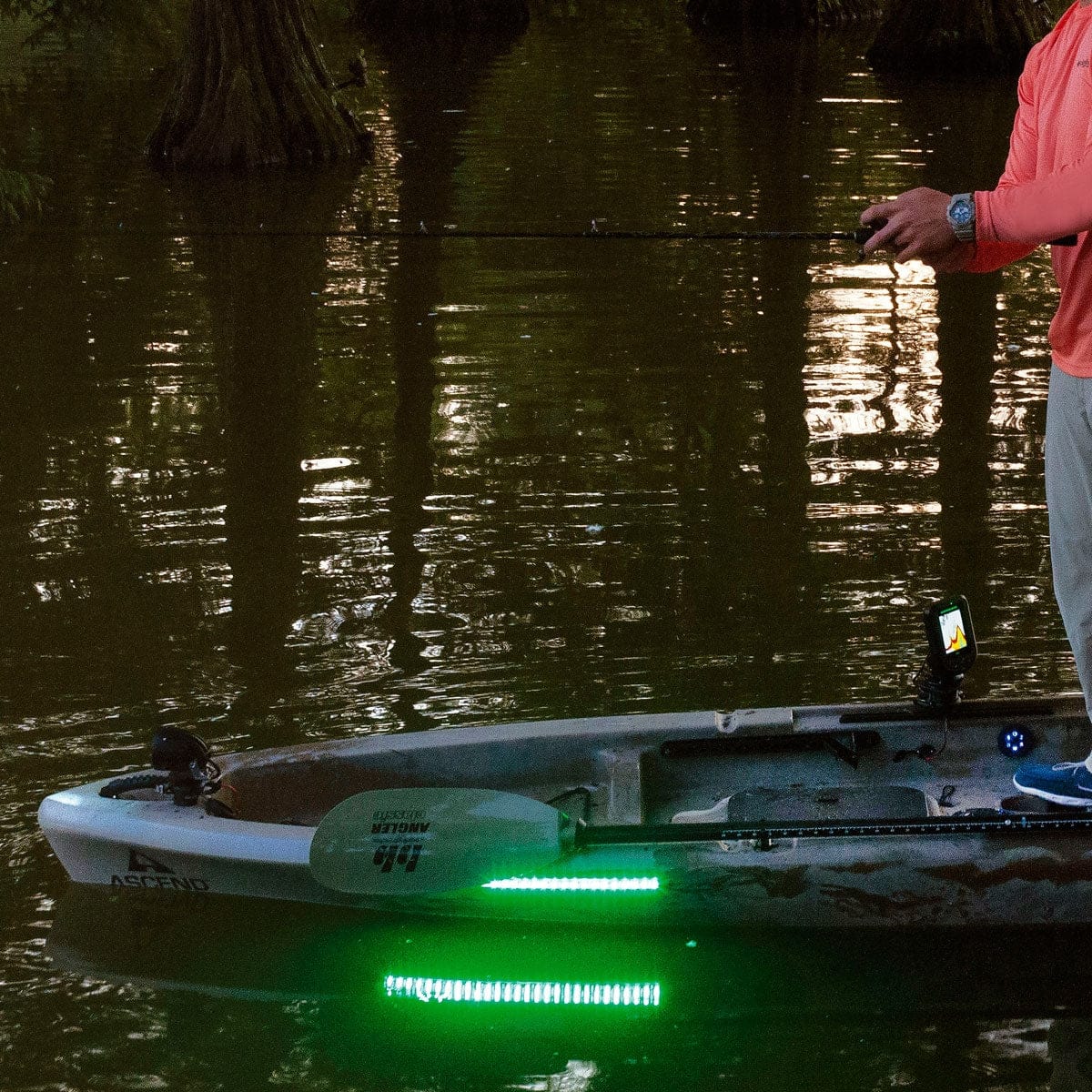

Lights, power, charging! Our Power Panel Switching System is 12-volt plug-and-play connectivity for you kayak. Why cut and splice when you can just plug-and-play? Our system is designed to make it quick and easy to add and control 12-volt electronics on your kayak. With five switched outlets, you can connect your fish finder, bait well pump, LED lighting, phone charger and any other 12-volt accessory you need while you’re on the water.
All accessories are connected and controlled independently using individual buttons on the control panel. Each button turns red when activated, making it easy to see which buttons are in use. The master power switch allows you to completely power up or down the entire system with the press of a button to minimize your power consumption, too.
The Power Panel Switching System uses our plug-and-play connectors so configuring and adding accessories is super simply. Powering the system is easy, too. It plugs directly into our Power Pack Battery Box or Battery Terminal Pigtails, no cutting or splicing required.
Warning: If connecting a trolling motor, large LED light bar, agricultural sprayer or other high current electronic 12V device you MUST use a secondary YP-LDR50 Heavy Duty relay and the correct size gauge of wire on the load side of the relay between the relay and the device you are connecting. You must also use the same size gauge of wire on the battery connection to the relay to insure proper function and protection of your device. Please consult the specifications for the device you are connecting for proper wire sizing BEFORE installation.
Note: Make sure the plug-and-play connectors are completely pushed together when connecting the system together. Yak-Power uses our own custom tooled, high tolerance, very snug fitting connectors with larger gauge, real copper wire to ensure a quality, weatherproof and reliable connection.
All our plug-and-play accessories are specifically designed to work together while maintaining the correct battery polarity throughout the entire Yak-Power system. Using other aftermarket connectors or splicing other connectors into the YP system may cause damage to the system or the accessories connected to the system and may void your warranty.
Caution: Make sure to pay attention to the actual wire colors of all our accessory cables to ensure that the red (+) wire is always connecting to the red (+) wire on the connector into which it is being plugged.
Support Materials
|
Specifications
- Product Weight 1 lb
- Control Panel Mounting Depth 1 1/4 inch
- Control Panel Cable Length 22 inches
- Control Panel Mounting Hole Size 2 1/8 inch
- Wire Gauge 14 AWG
- MPN YP-RP5R
