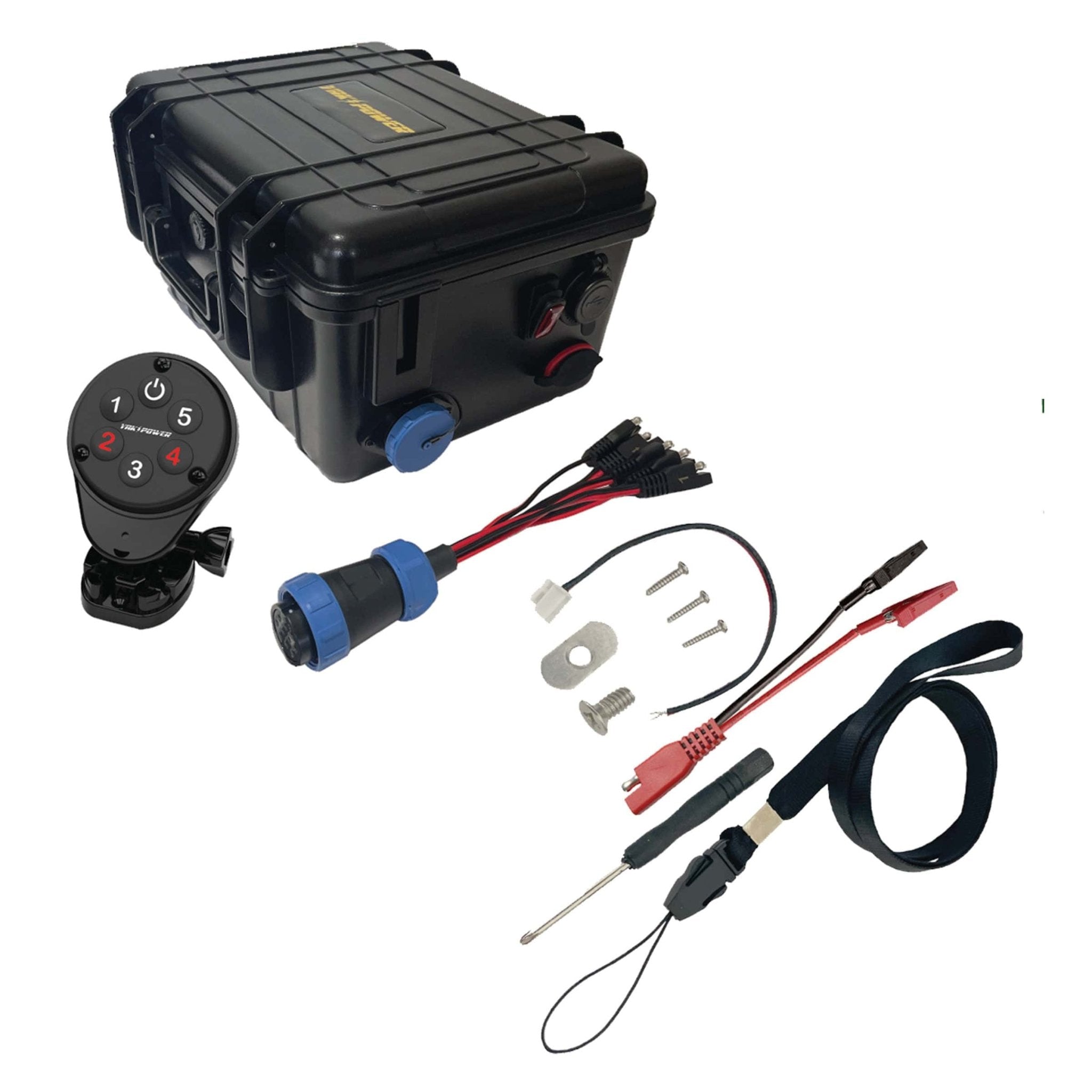

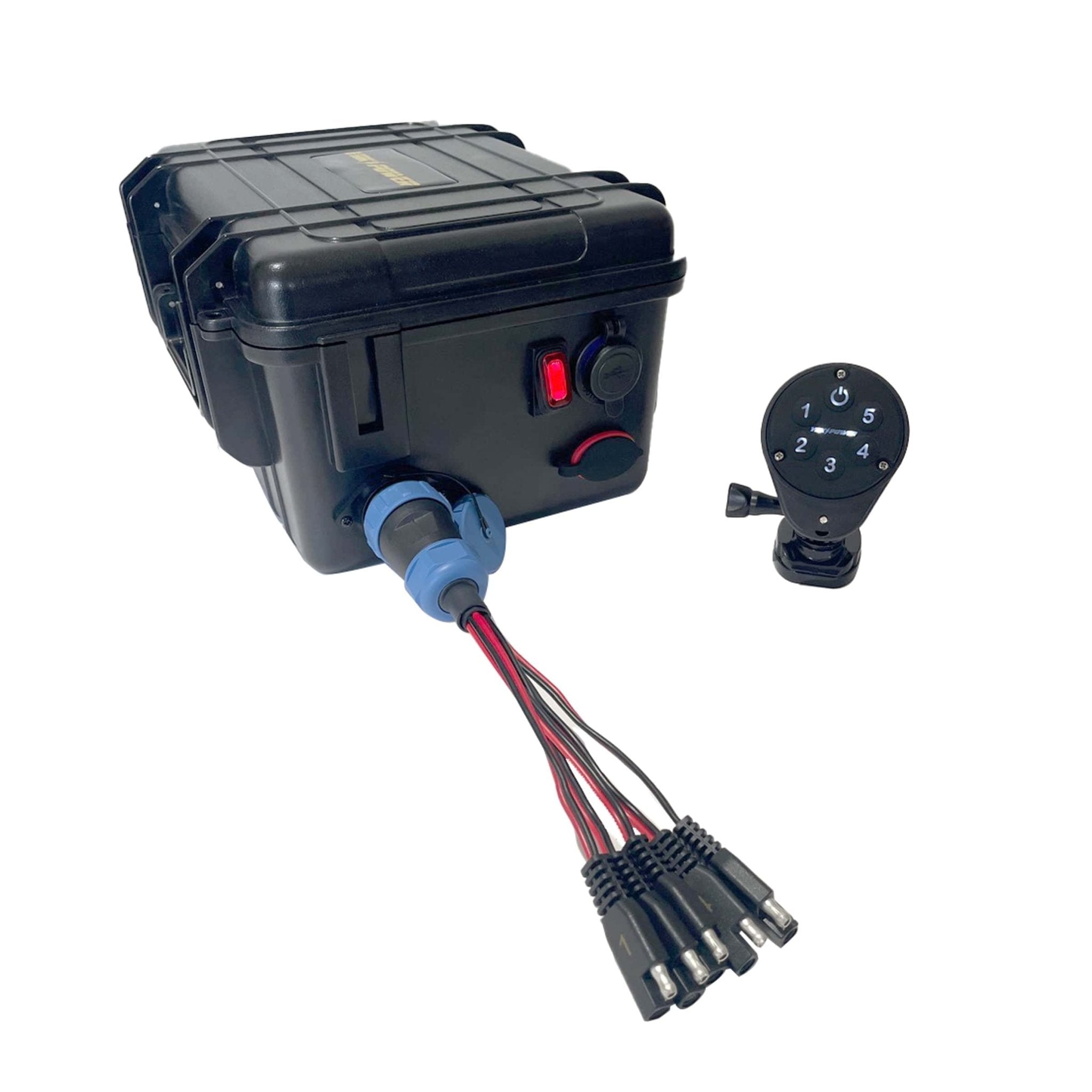

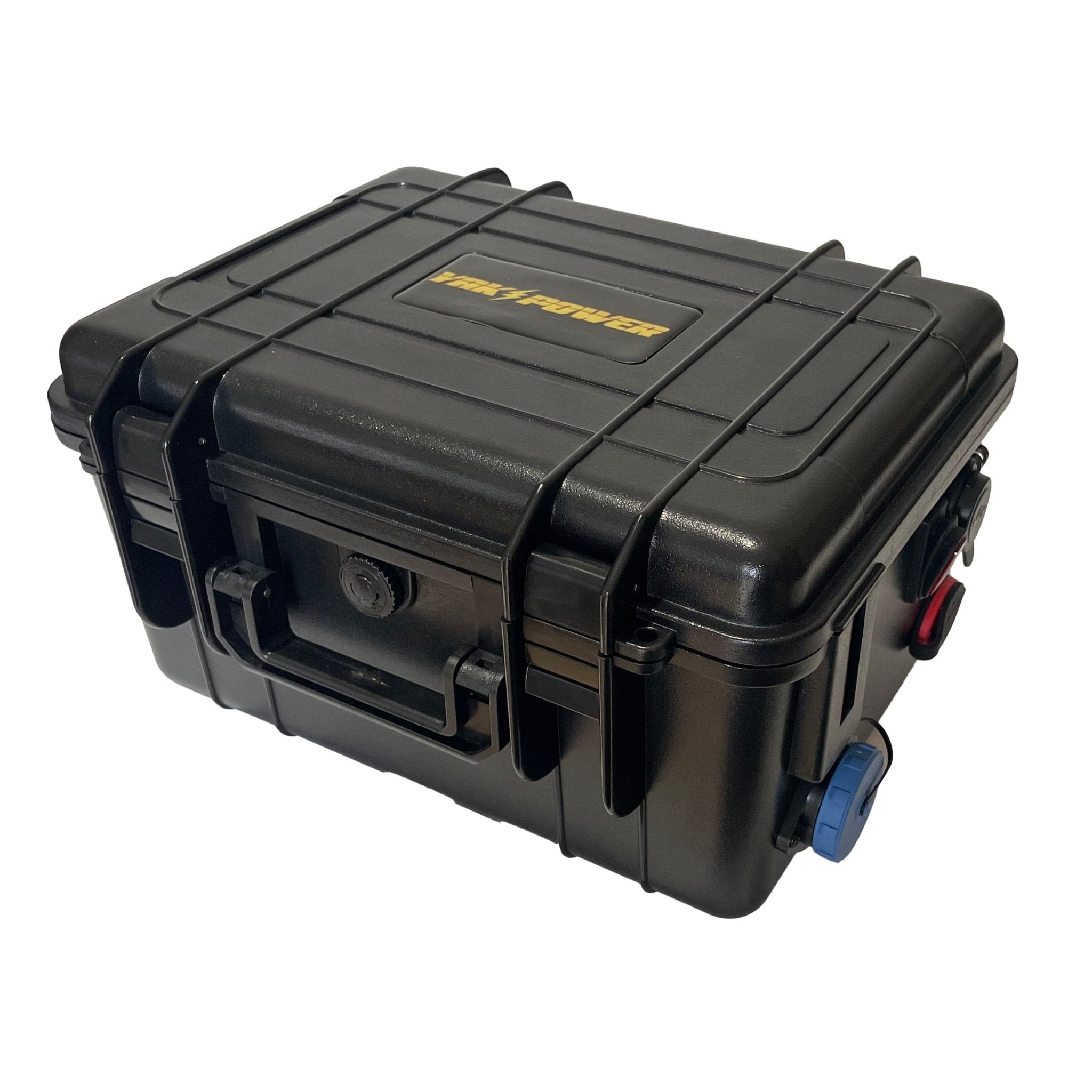

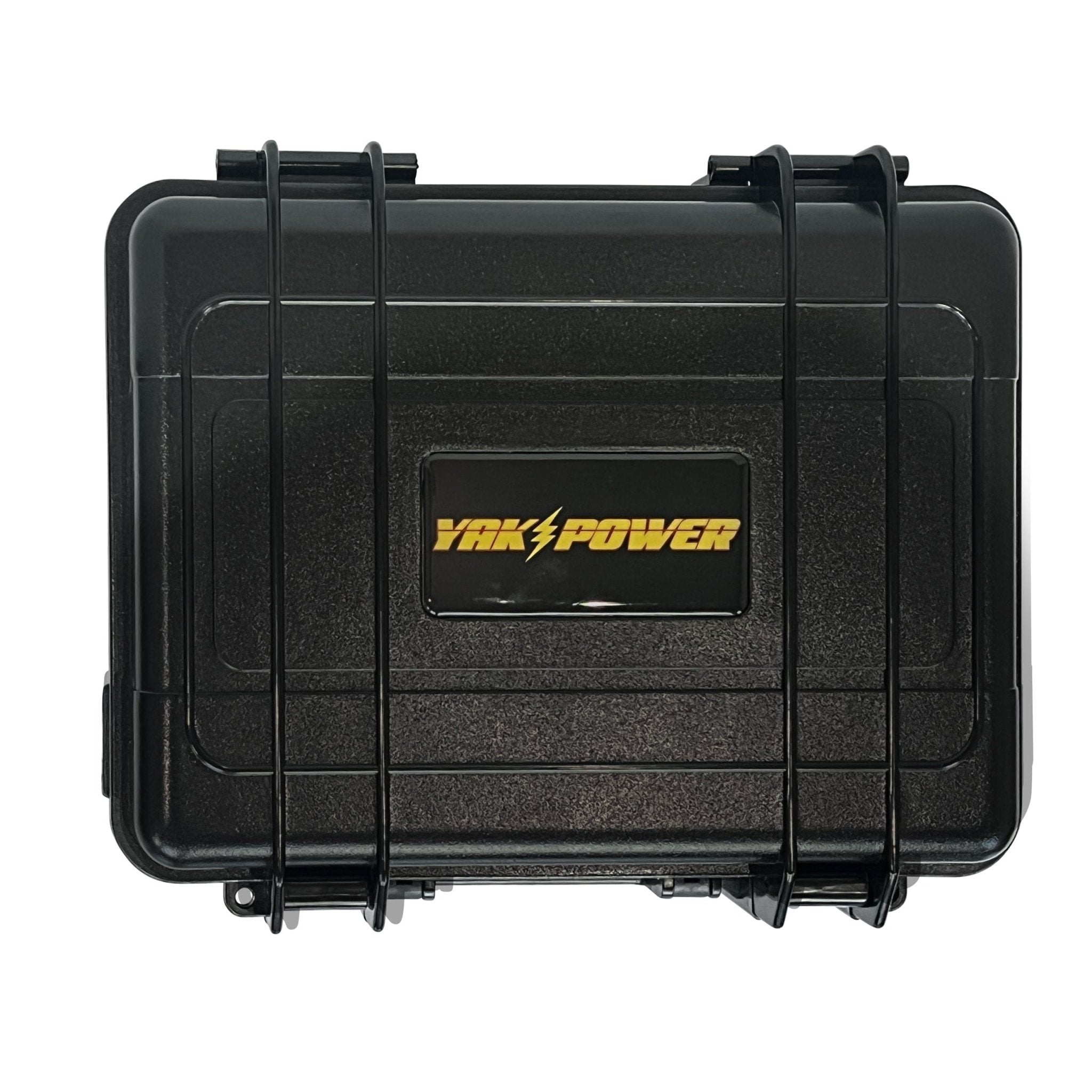

Portable Power Station with 5 Circuit Wireless Digital Switching System (batteries not included)
- Integrated 5 Circuit Wireless Digital Switching System with inline fuse.
- 5 Switched Output Ports

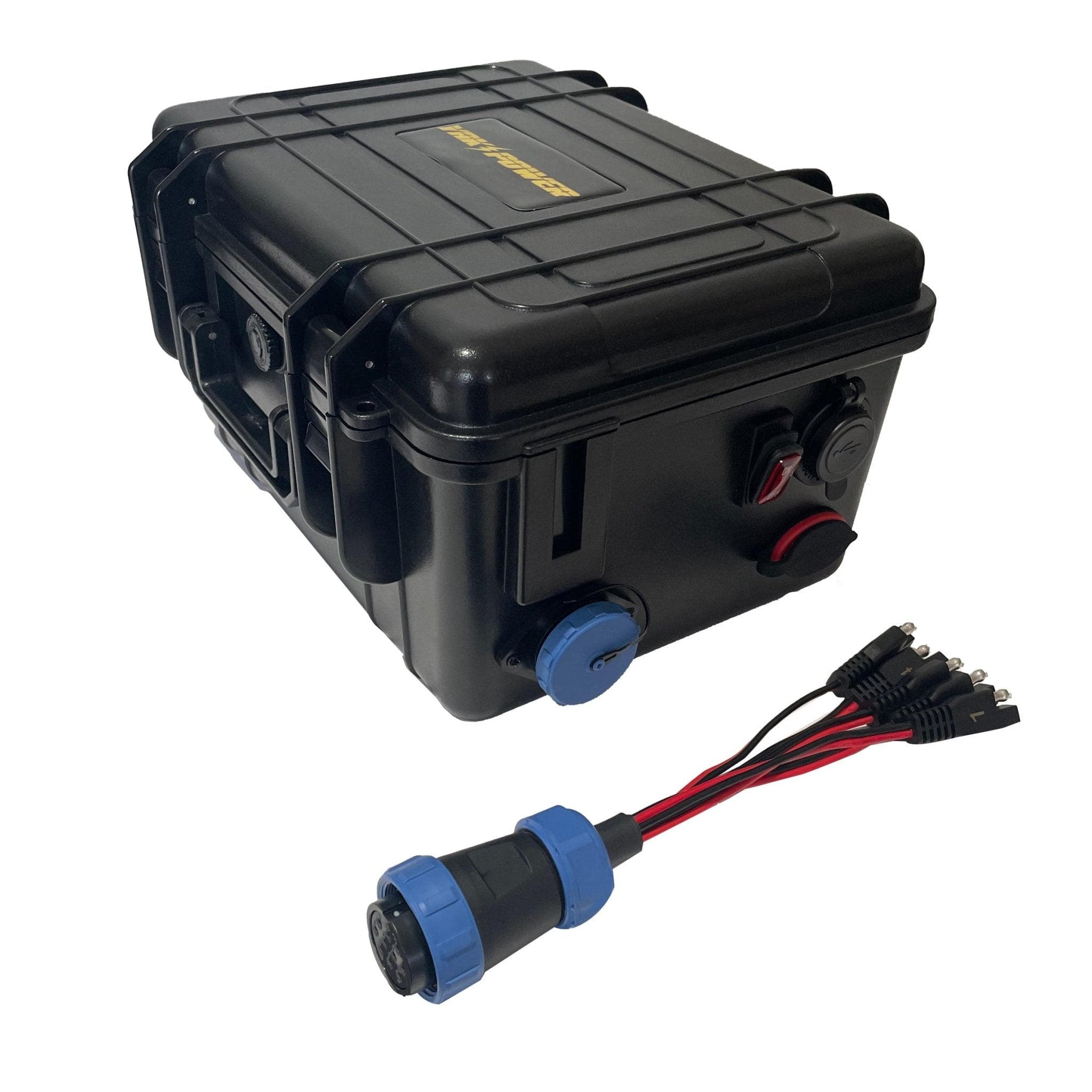

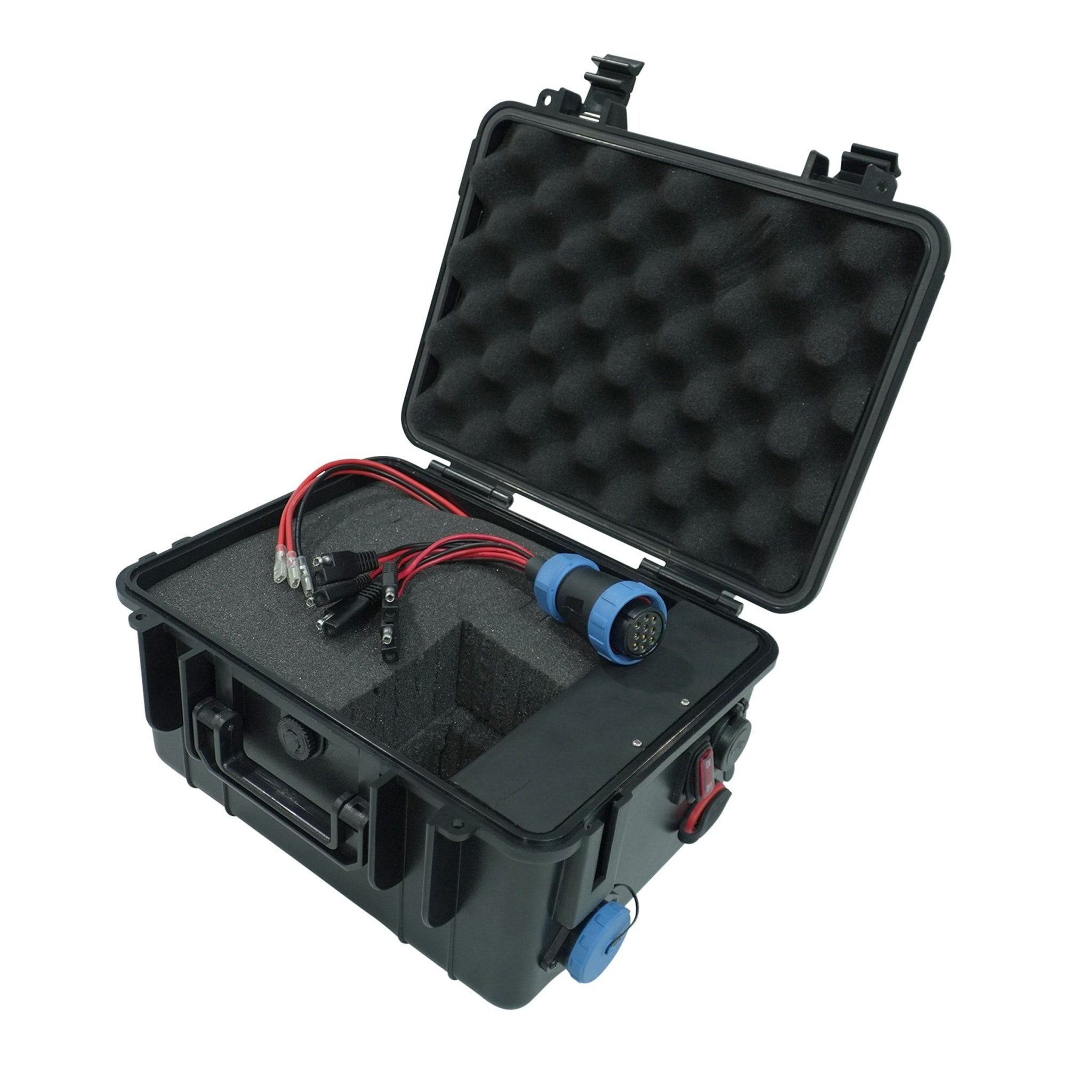

- Waterproof 5 Circuit Quick Disconnect plug with Yak Power plug-and-play SAE connectors.

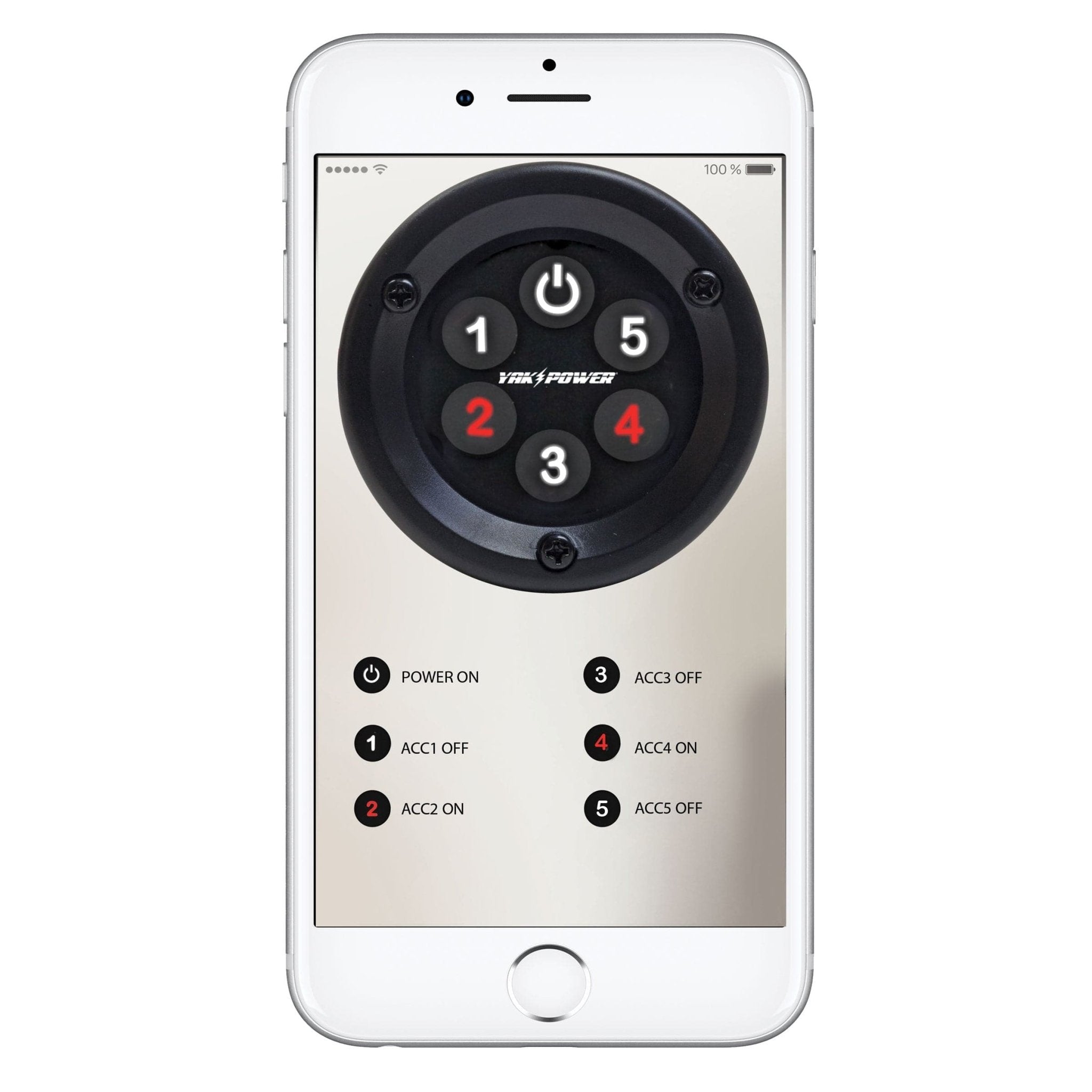

- RF Keypad/Bluetooth Control including mobile app control for both iOS and Android

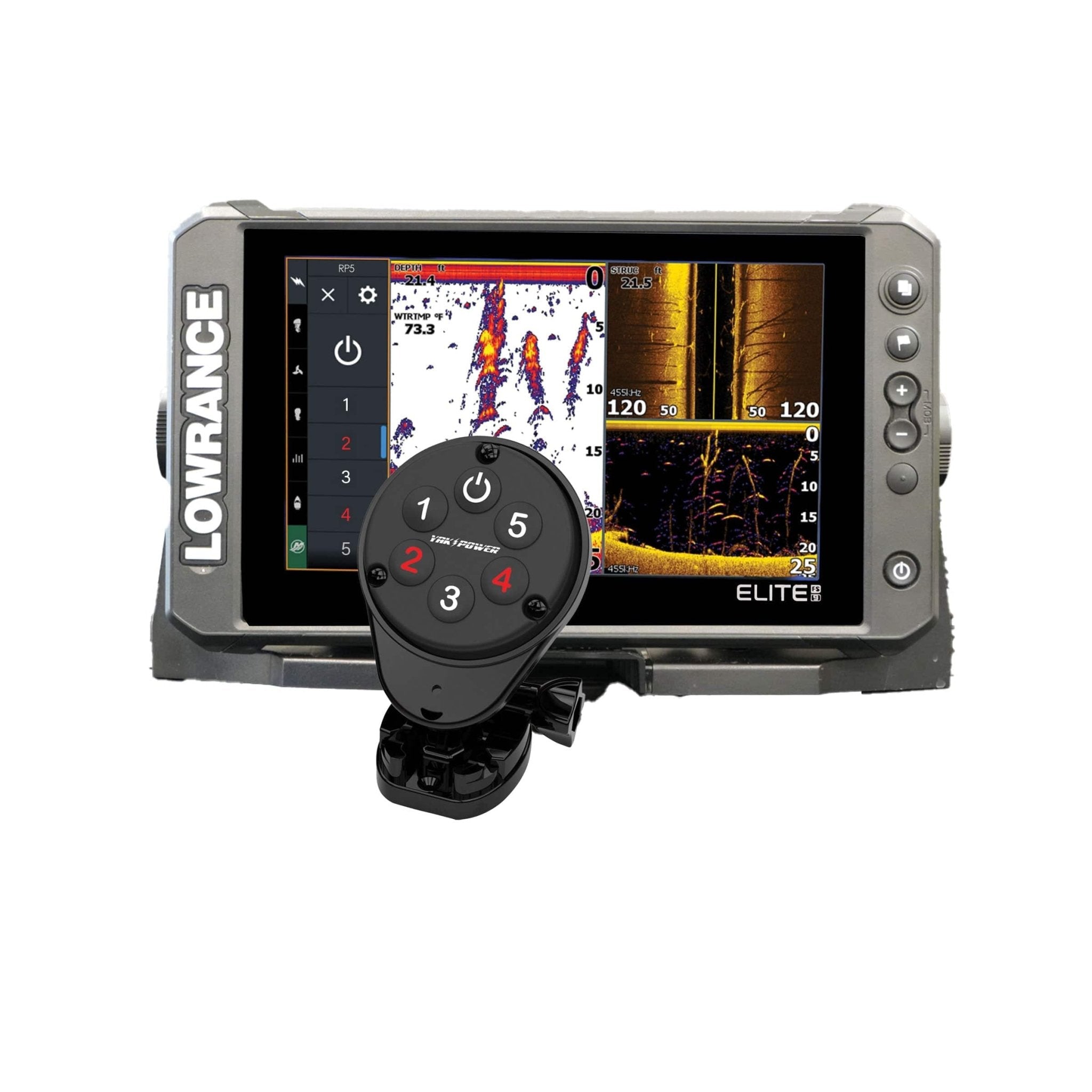

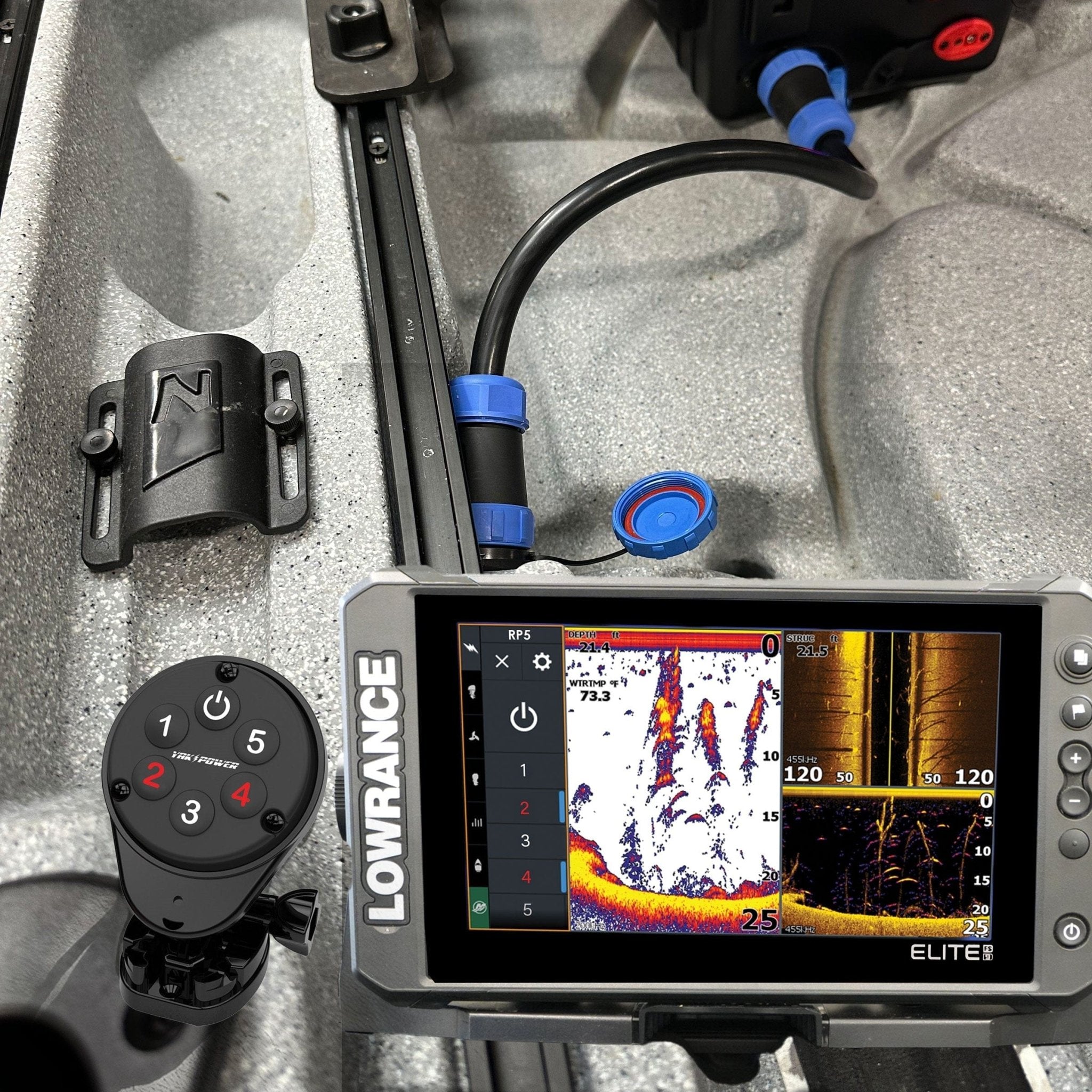

- Wirelessly Compatible with all Lowrance HDS Live, HDS Pro, and Elite FS series graphs

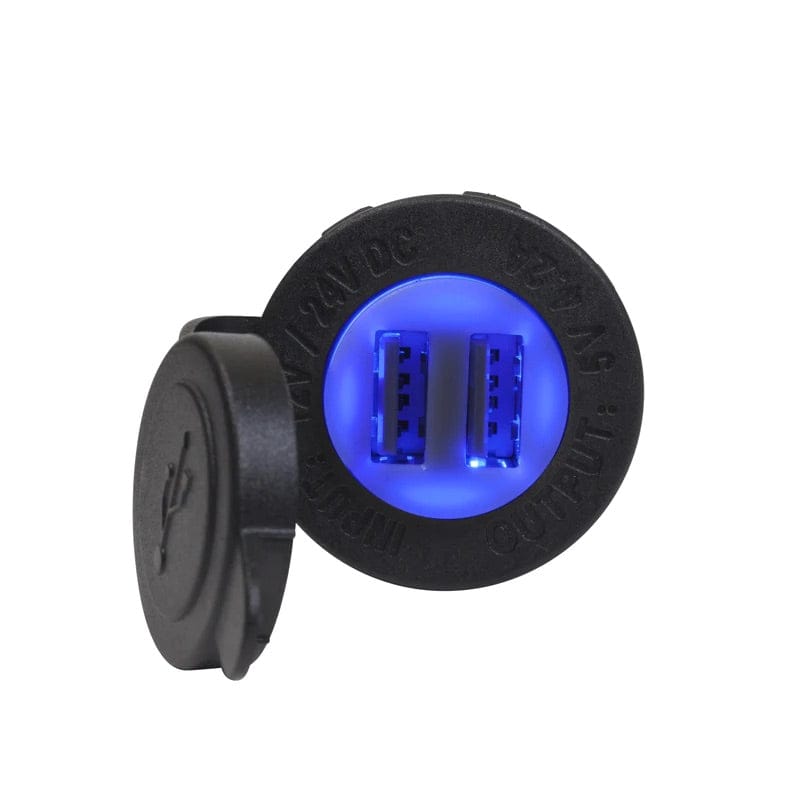

- Integrated Dual USB charging ports
- Last Mode Memory: The system remembers which circuits were ON when Master Power Button is used to turn the entire system OFF. Then when the system is turned back ON using the Master Power Button, all of the “Last Mode” circuits will also be turned back on.

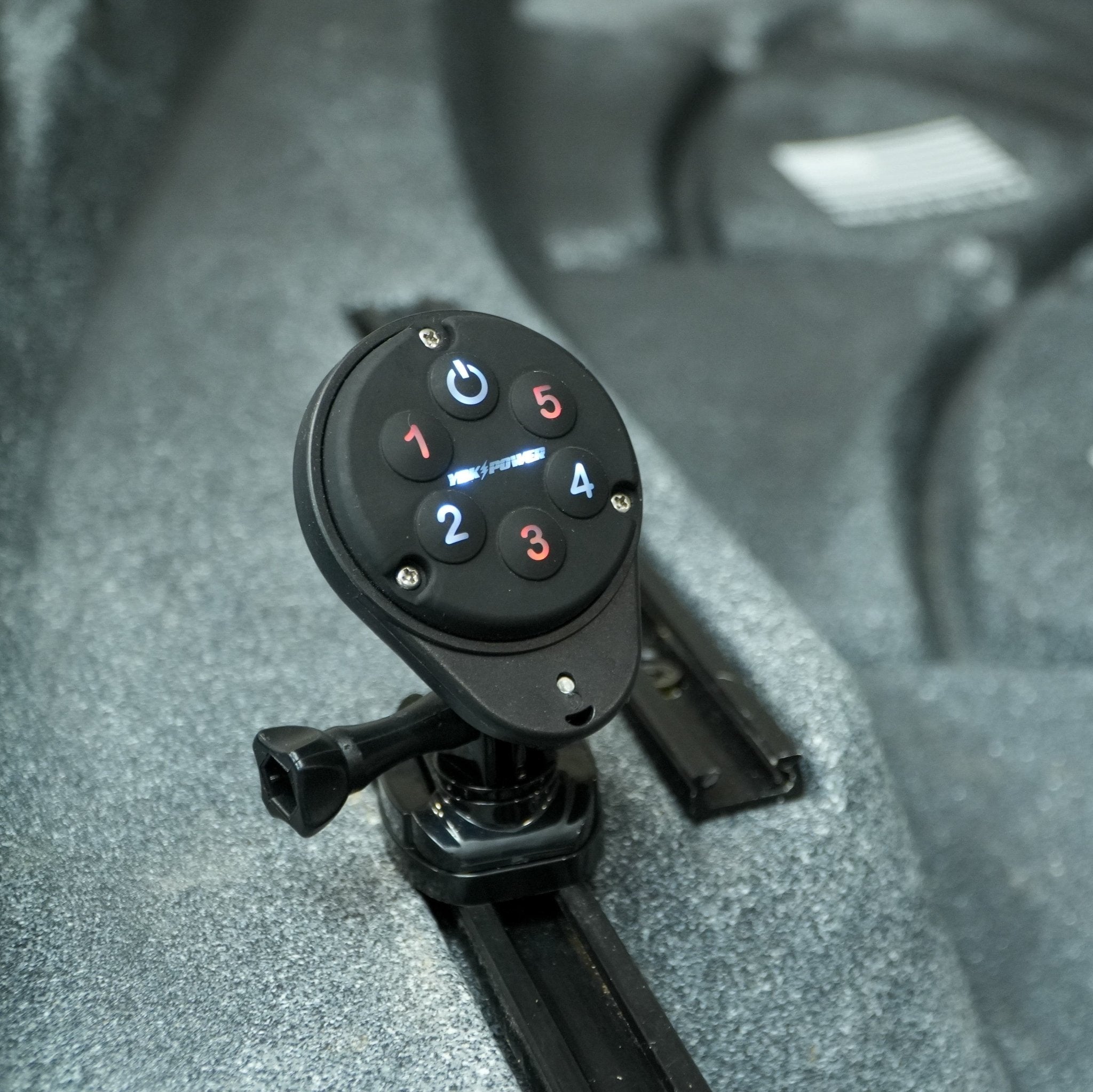

- Keypad Action Mount: with t-nut for rail mounting. Remote Lanyard and optional surface mount included.

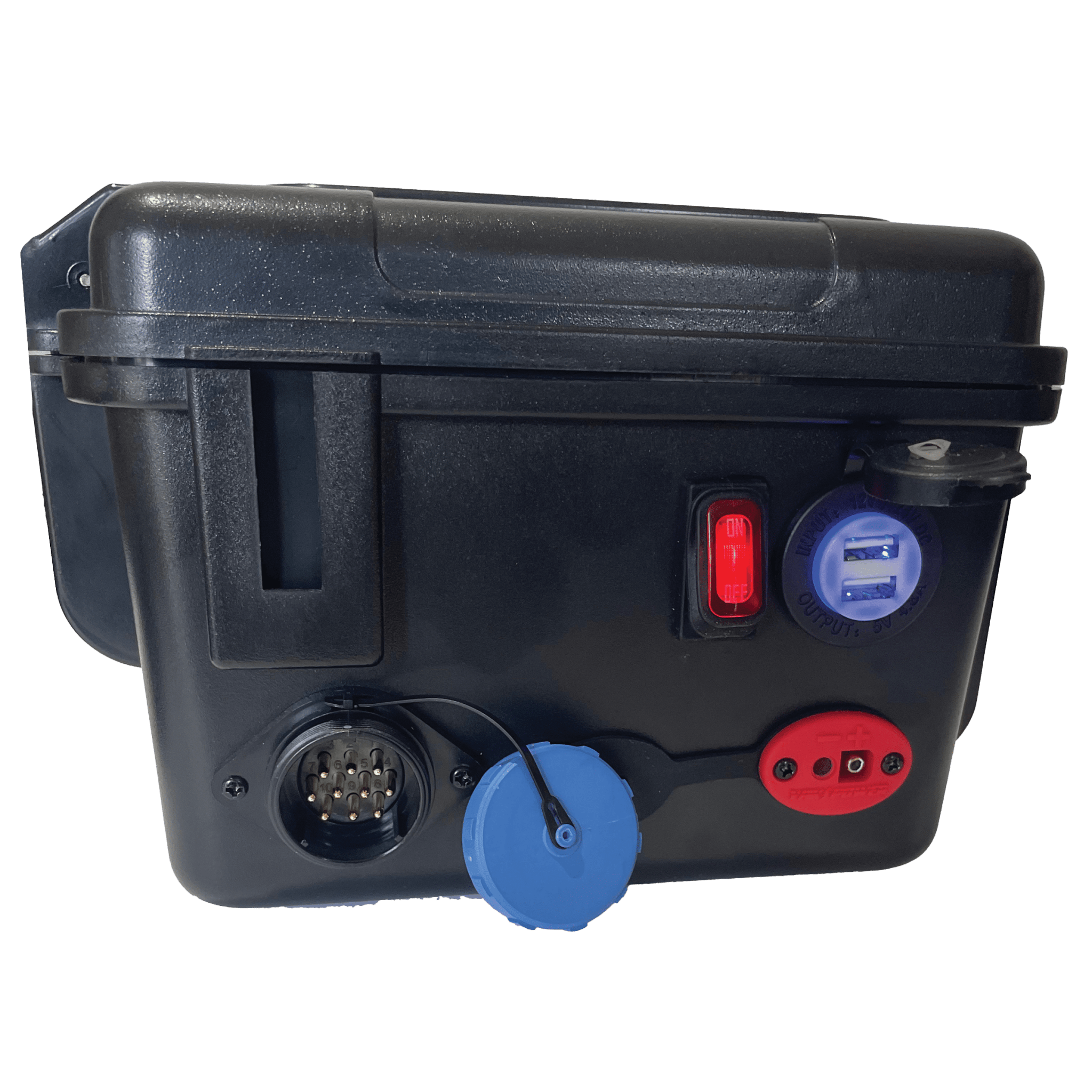

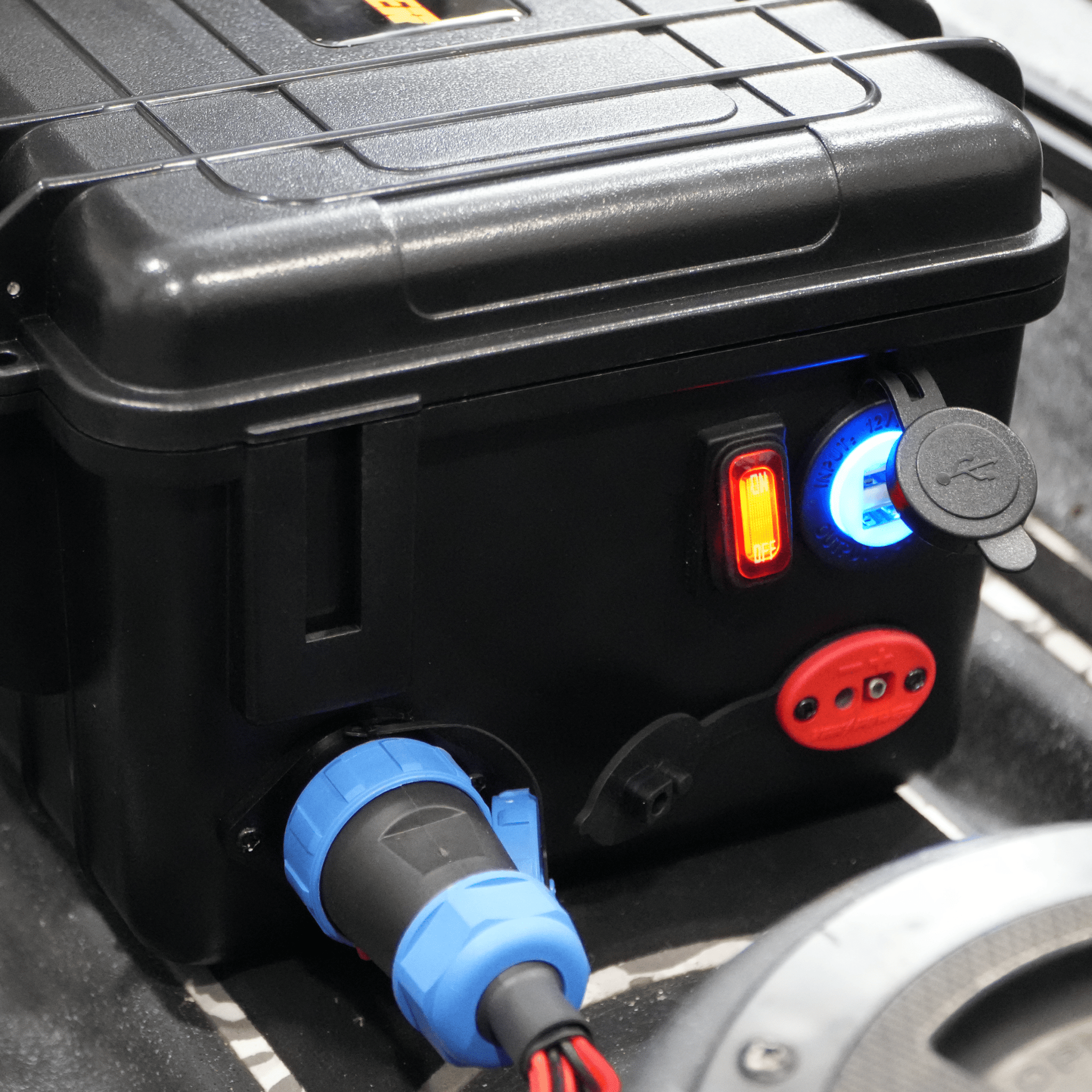

- Lighted Master Battery Power Shut-off Switch to minimize power consumption

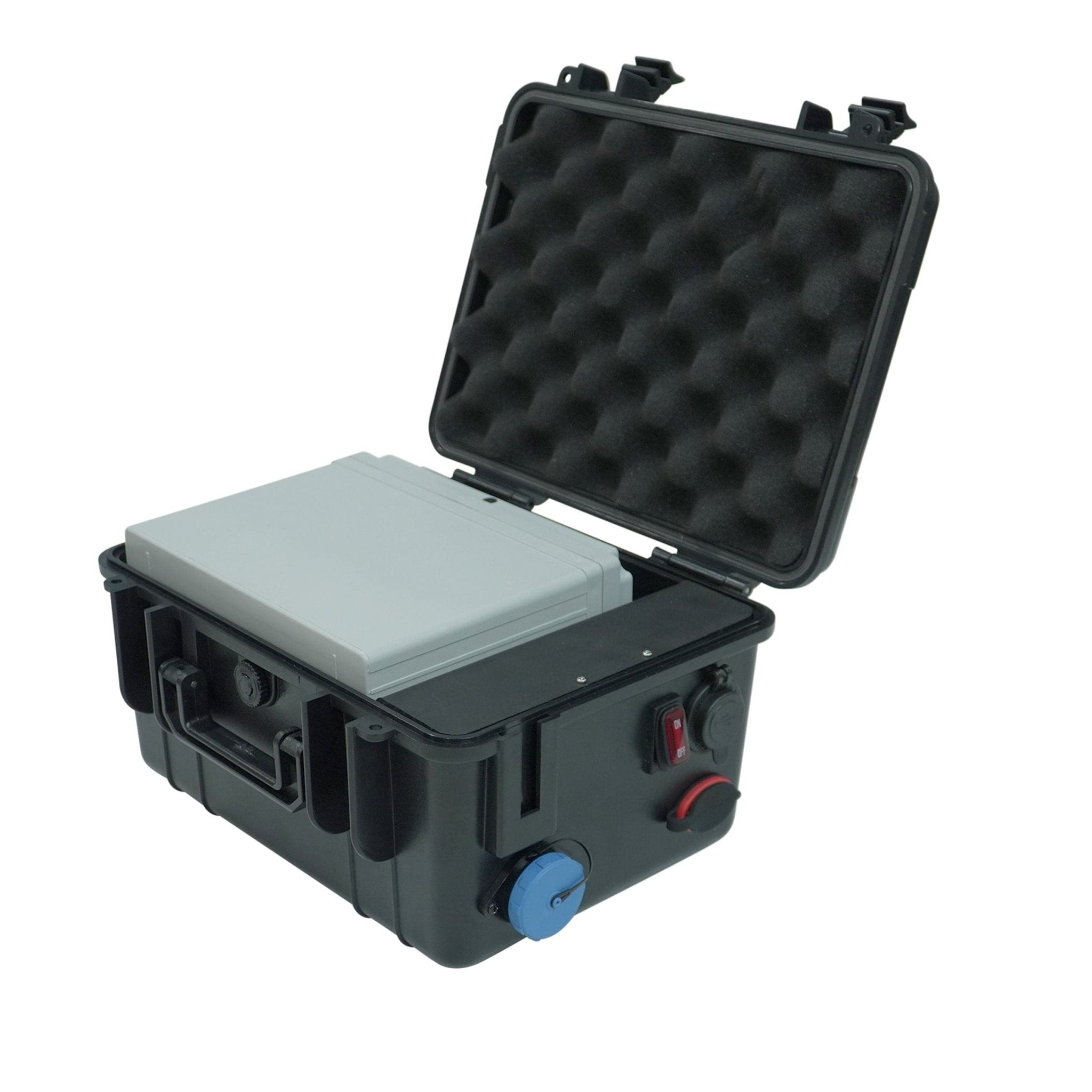

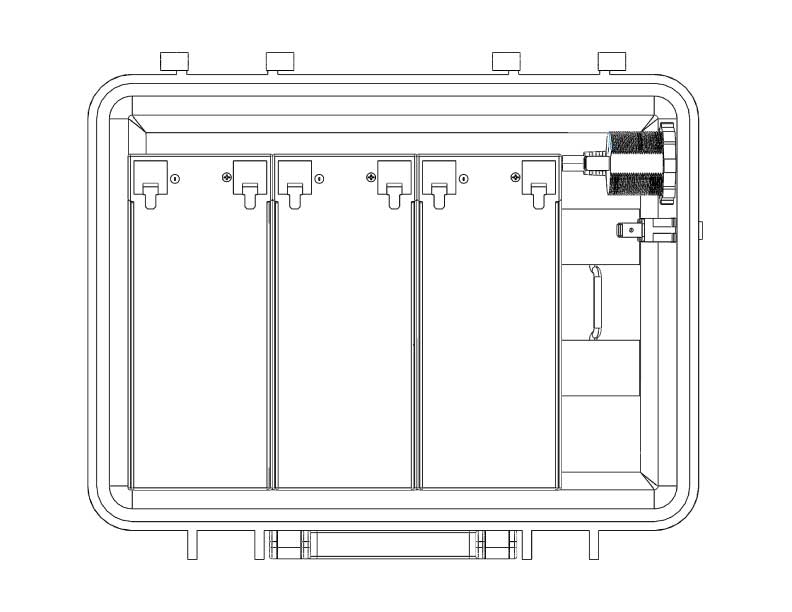

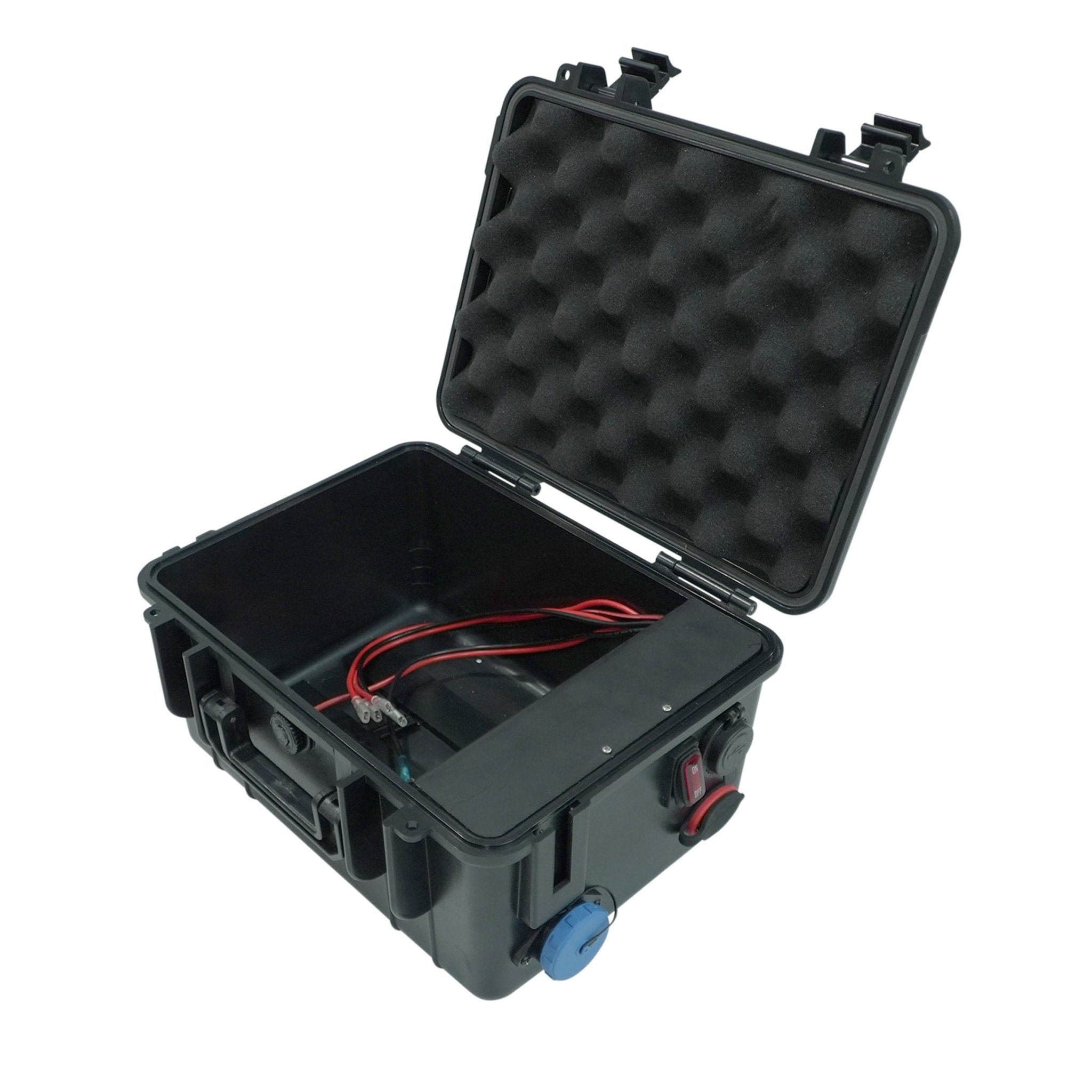

- Pre-wired for up to 3 7AH batteries (batteries NOT included)
- Designed for 15 amps total current draw.
- Optional keypad hardwire kit included.

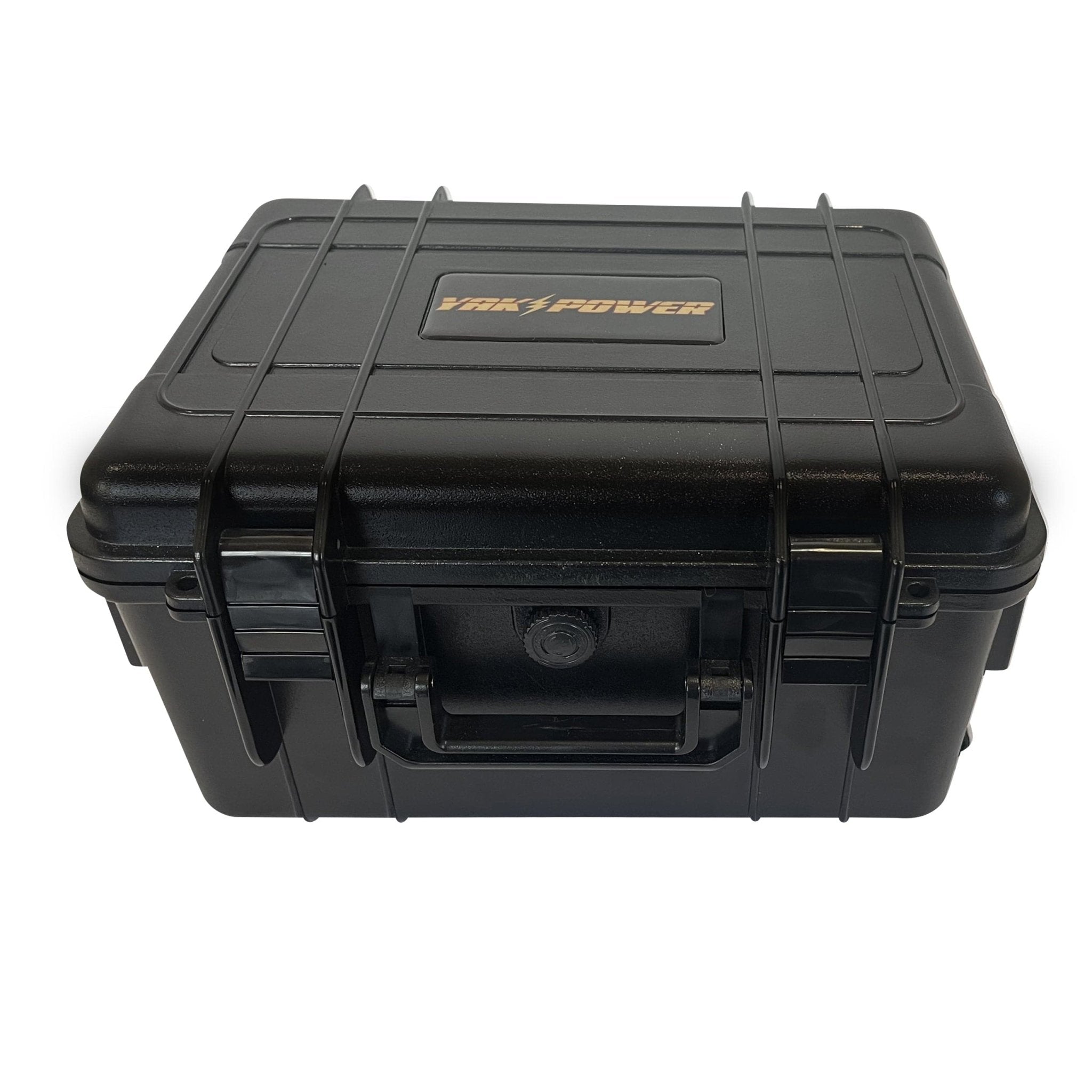

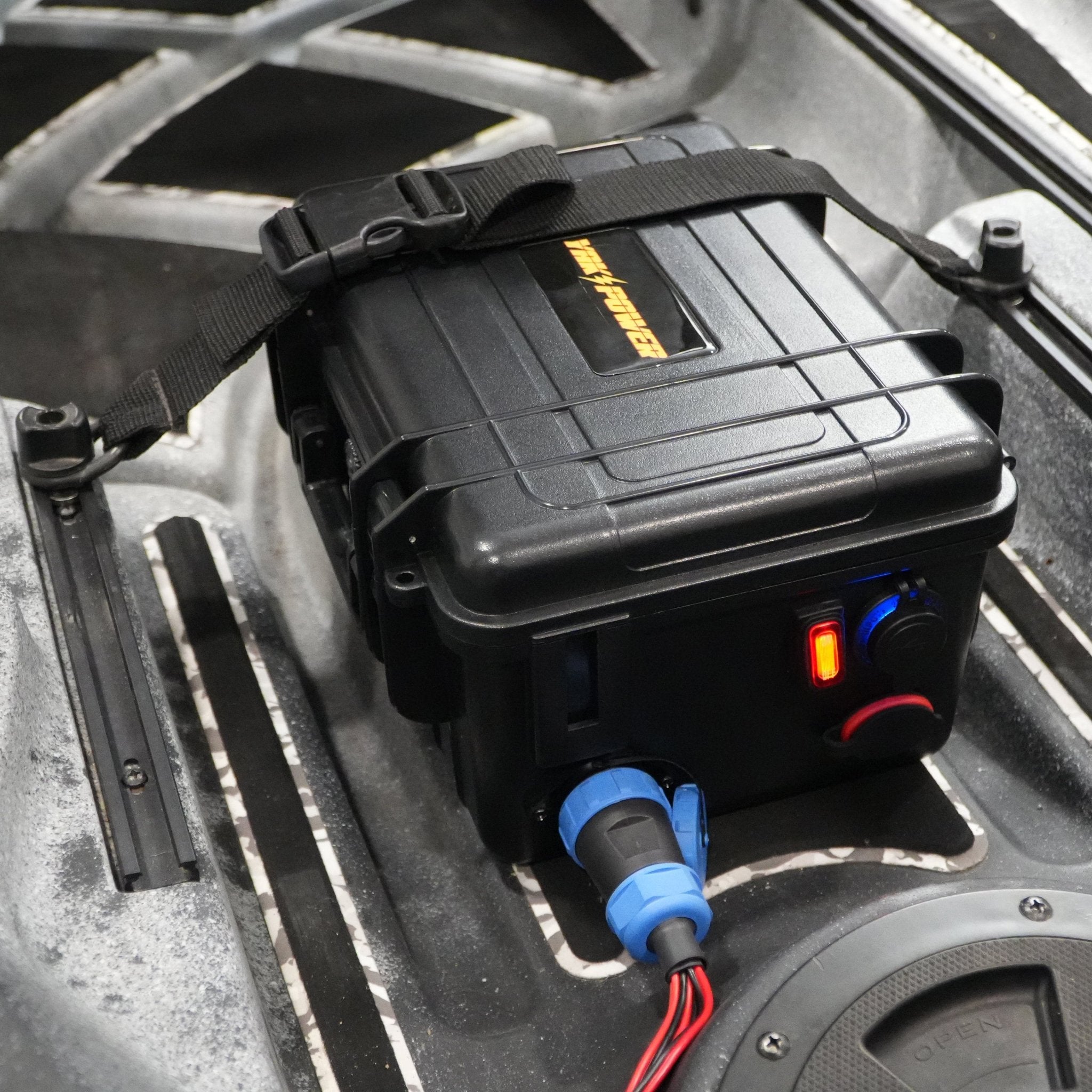

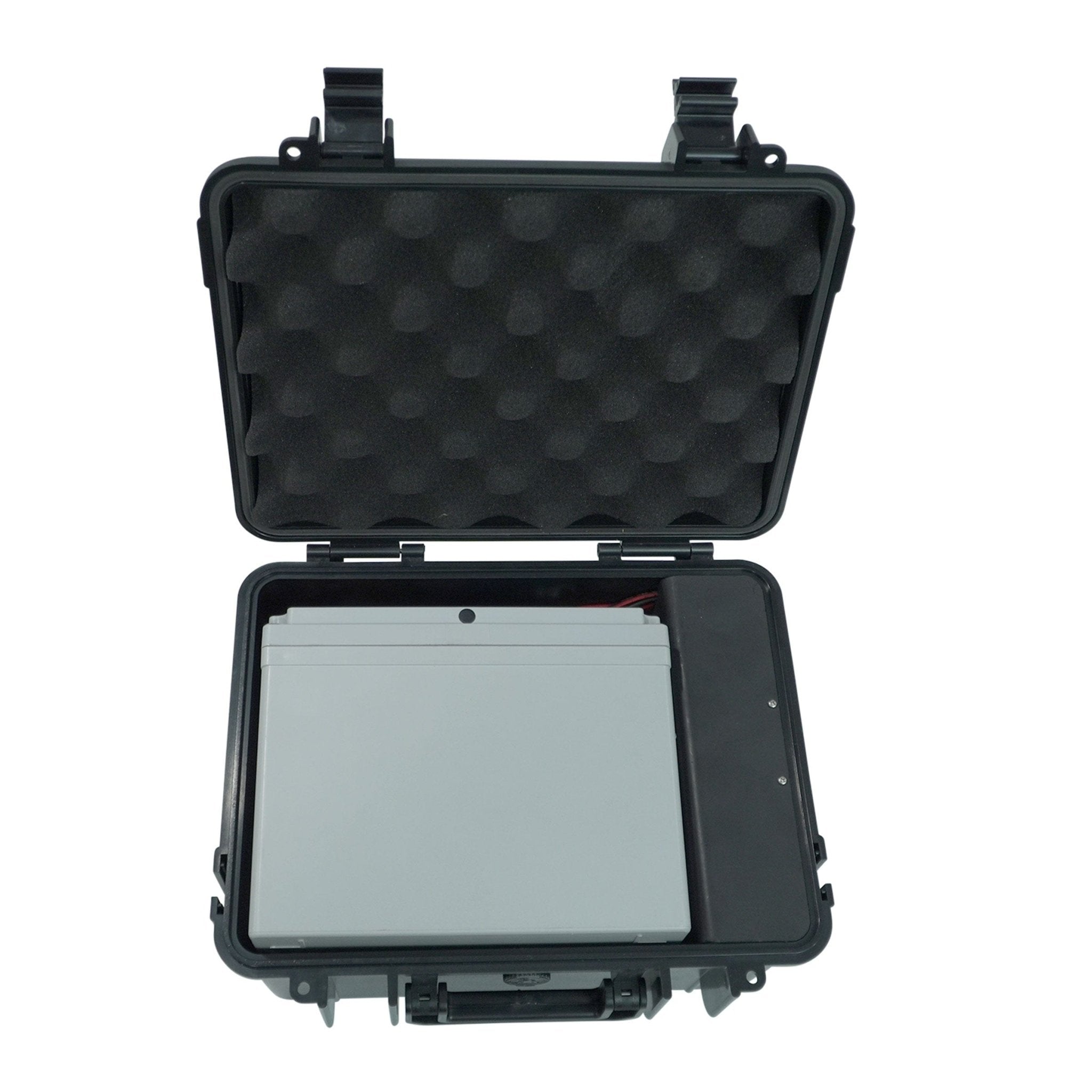

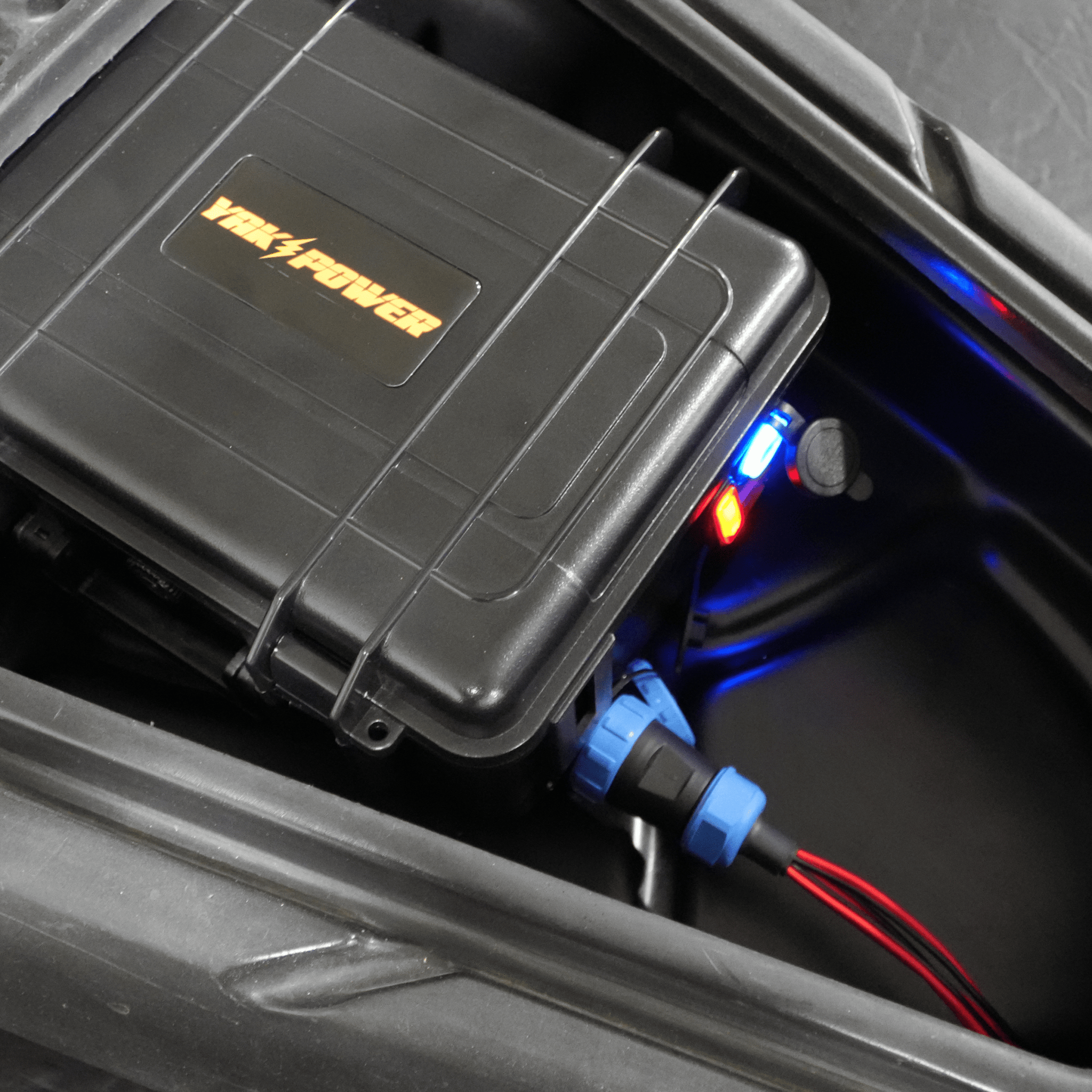

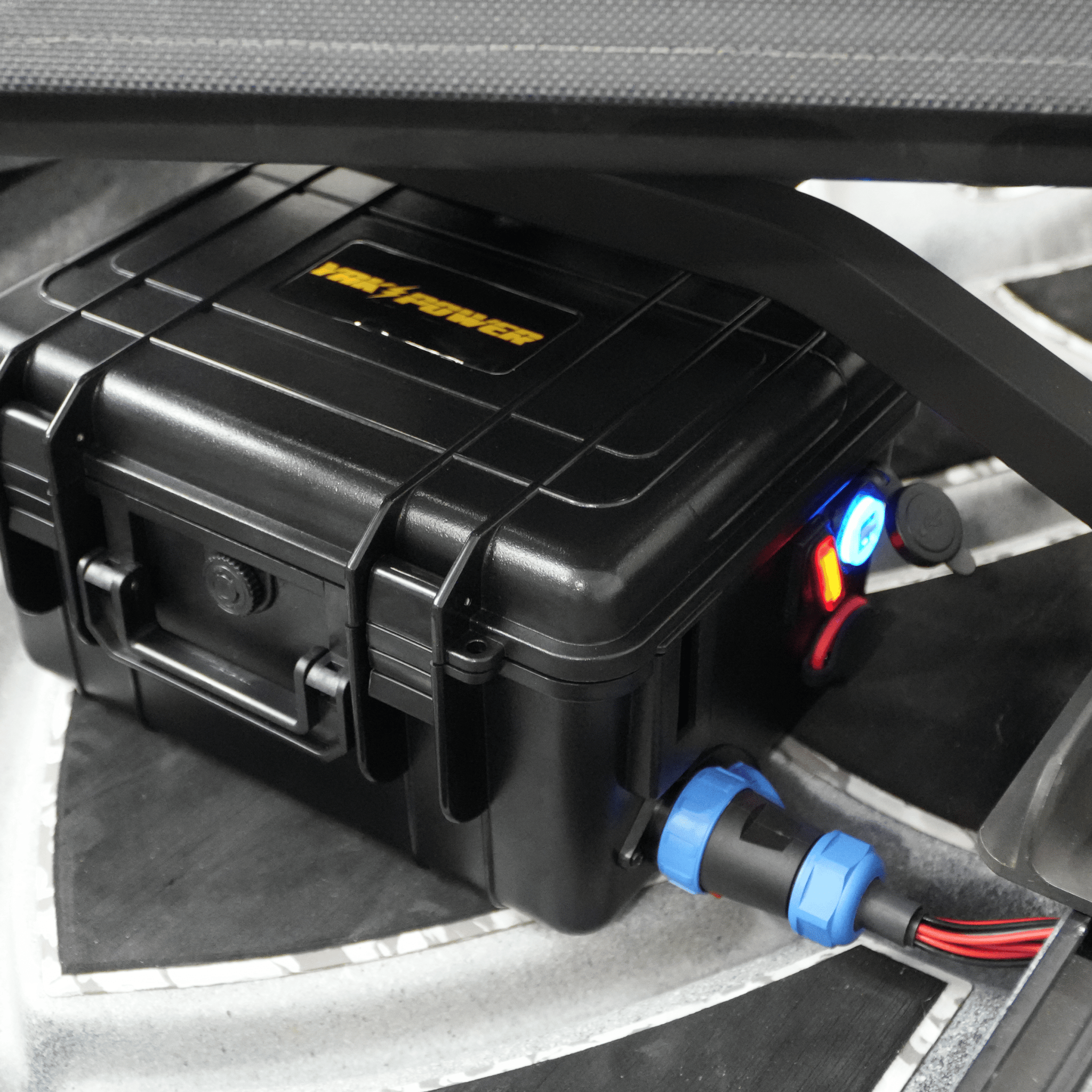

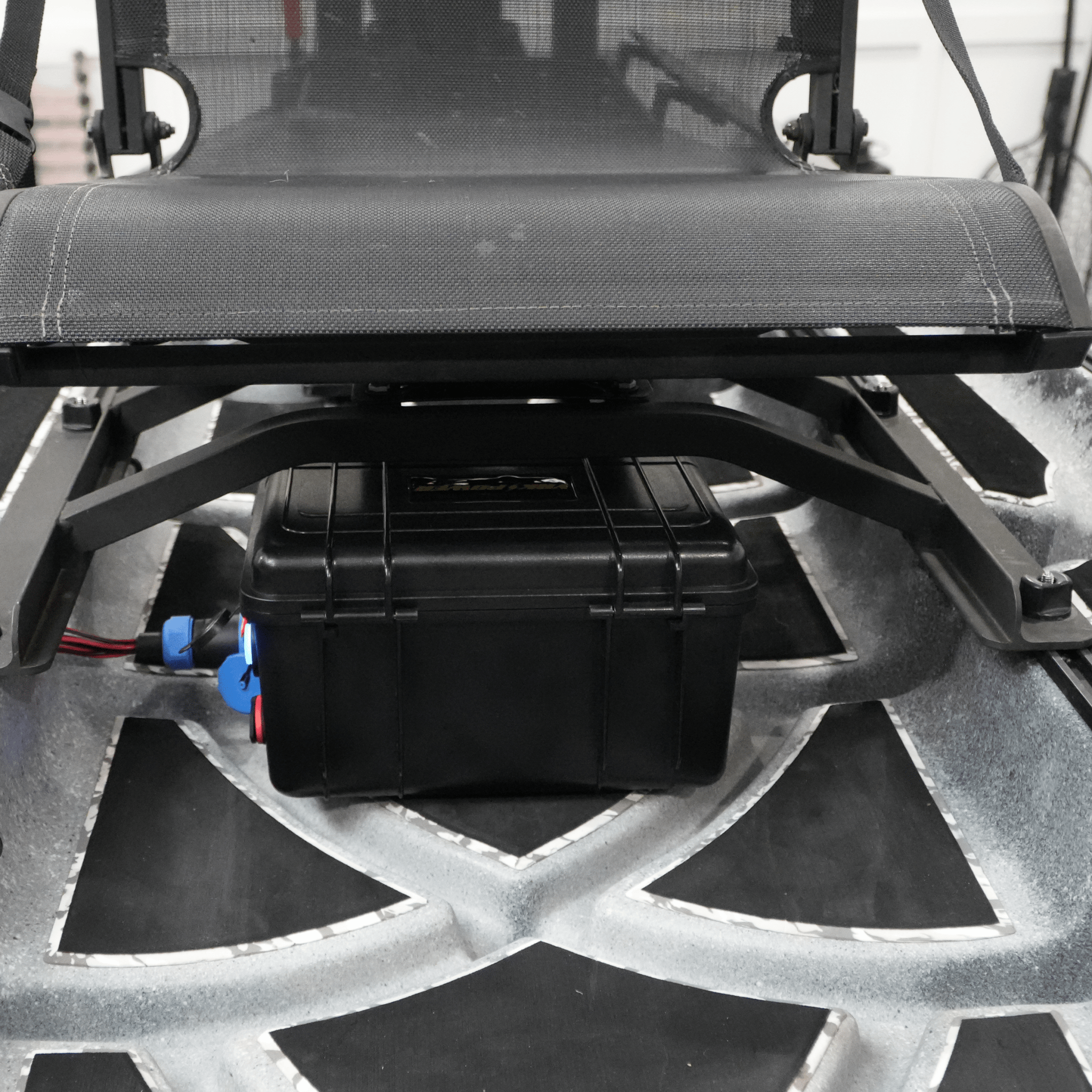

The Yak Power Portable Power Station is the ultimate power solution for your outdoor adventure! Featuring 5 switched outlets, battery powered keypad with quick disconnect base, t-nut rail track mounting, integrated Bluetooth with mobile app control, last memory mode, inline 15A fuse, and Yak Power plug-and-play connectivity make plugging in and powering your 12-volt accessories easy. The compact and waterproof design can hold up to three 7AH batteries or two 12AH batteries (batteries NOT included) while still being small enough to stow away. And, the integrated external, dual USB charging port ensures that both your mobile device and outdoor action camera have all the power they need to capture all the action. All accessories are connected and controlled independently using individual buttons. Each button turns RED when it is activated.
The Portable Power Station also comes with a built-in lighted master battery power shut-off switch to give you full control over when your power is on or off.
Warning: If connecting a trolling motor, large LED light bar, agricultural sprayer or other high current electronic 12V device you MUST use a secondary YP-LDR50 Heavy Duty relay and the correct size gauge of wire on the load side of the relay between the relay and the device you are connecting. You must also use the same size gauge of wire on the battery connection to the relay to insure proper function and protection of your device. Please consult the specifications for the device you are connecting for proper wire sizing BEFORE installation.
Note: Make sure the plug-and-play connectors are completely pushed together when connecting the system together. Yak-Power uses our own custom tooled, high tolerance, very snug fitting connectors with larger gauge, real copper wire to ensure a quality, weatherproof and reliable connection.
All our plug-and-play accessories are specifically designed to work together while maintaining the correct battery polarity throughout the entire Yak-Power system. Using other aftermarket connectors or splicing other connectors into the YP system may cause damage to the system or the accessories connected to the system and may void your warranty.
Caution: Make sure to pay attention to the actual wire colors of all our accessory cables to ensure that the red (+) wire is always connecting to the red (+) wire on the connector into which it is being plugged.
Support Materials
|
|
Specifications
- Product Weight 5 lbs.

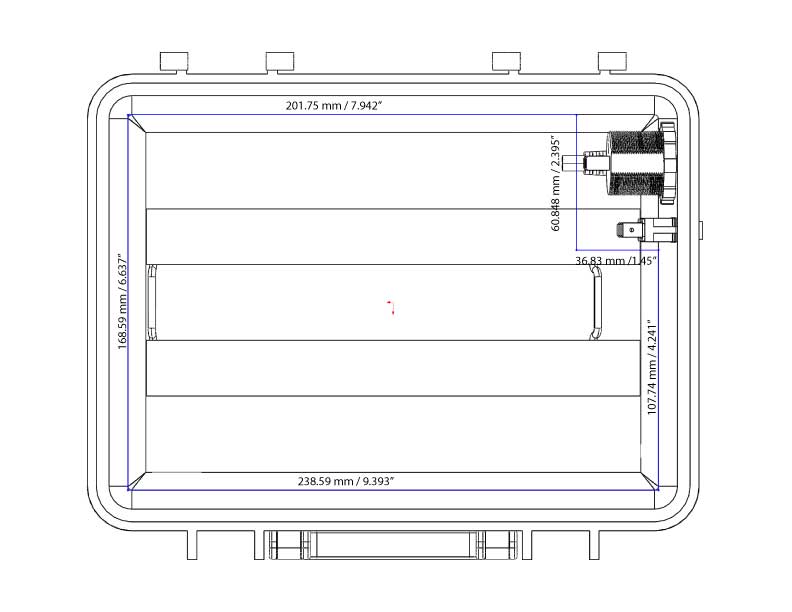

- H x W x L: 5.95 in. x 8.96 in. x 10.84 in.
- Current Draw 15 amps
- Wire Gauge 16 AWG
- MPN YP-PPS5W
