MONSTER MONITOR - FOCUS 16
**Note: Make sure to select correct gimbal bracket height size for your mounting location**

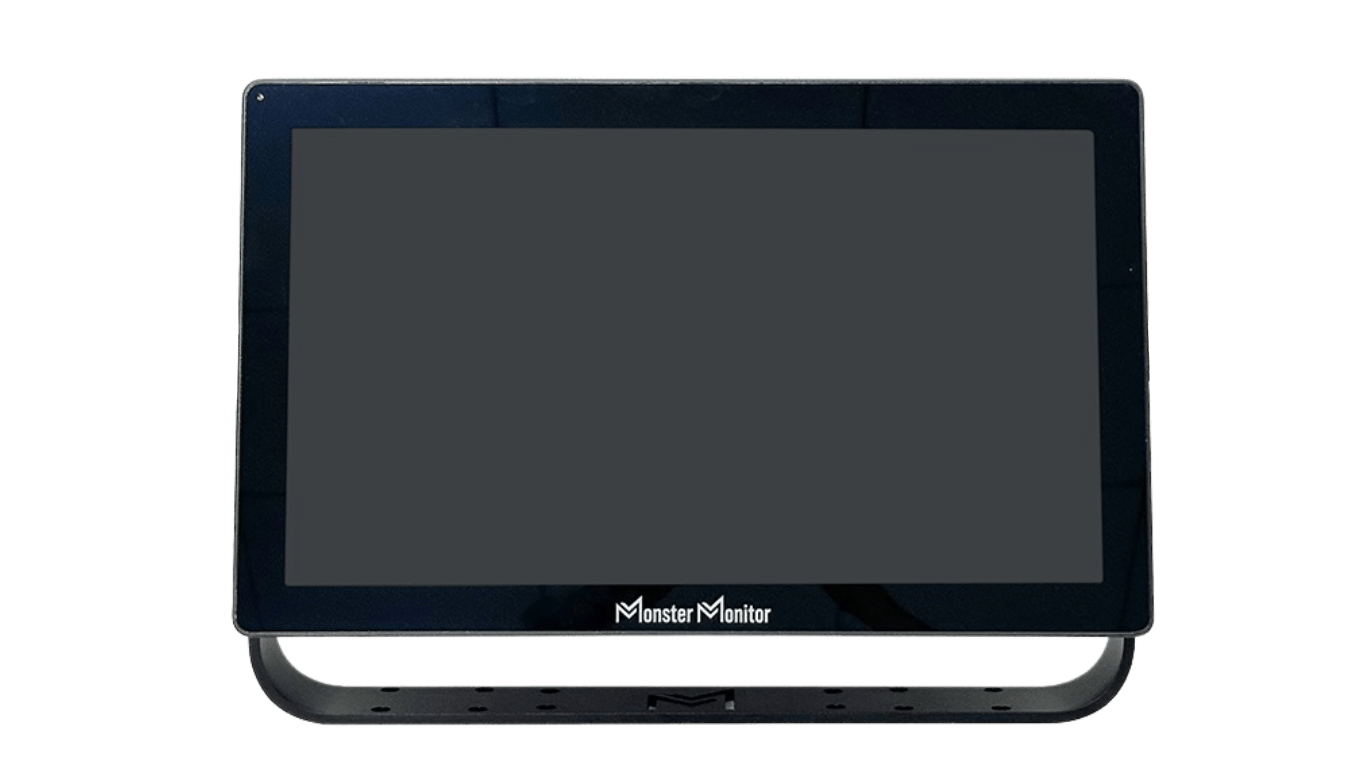

⚡ Monster Monitor Focus 16 – Marine Display
Model: Focus 16
Category: Professional Marine Touch Display Monitor
Overview
The Monster Monitor Focus 16 is a purpose-built marine display designed for anglers and captains who demand precision, visibility, and durability on the water.
Engineered with a Full HD 1920×1080 resolution, 1500-nit high-brightness LCD, and vac sealed optically bonded anti-reflective glass, this monitor delivers crystal-clear visibility even under direct sunlight.
Built for seamless integration with Garmin head units, it can also connect to Lowrance & Humminbird with some limitations to each as stated below in the chart. The Focus 16 combines rugged IP67 waterproof protection with cutting-edge touch capability and smooth HDMI video performance.
This marine-grade display is housed in a corrosion-resistant, sealed aluminum housing and tested to extreme vibration and environmental standards for uncompromising reliability.
⚙️ Key Features
-
Brilliant 15.6” Full HD Display – 1920×1080 resolution with 1500 nits of brightness for unmatched clarity in any light.
-
10-Point Capacitive Touchscreen – Responsive, glove-friendly interface for intuitive operation.
-
Vac Sealed Optically Bonded & Anti-Reflective – Eliminates glare, moisture intrusion, and internal fogging.
-

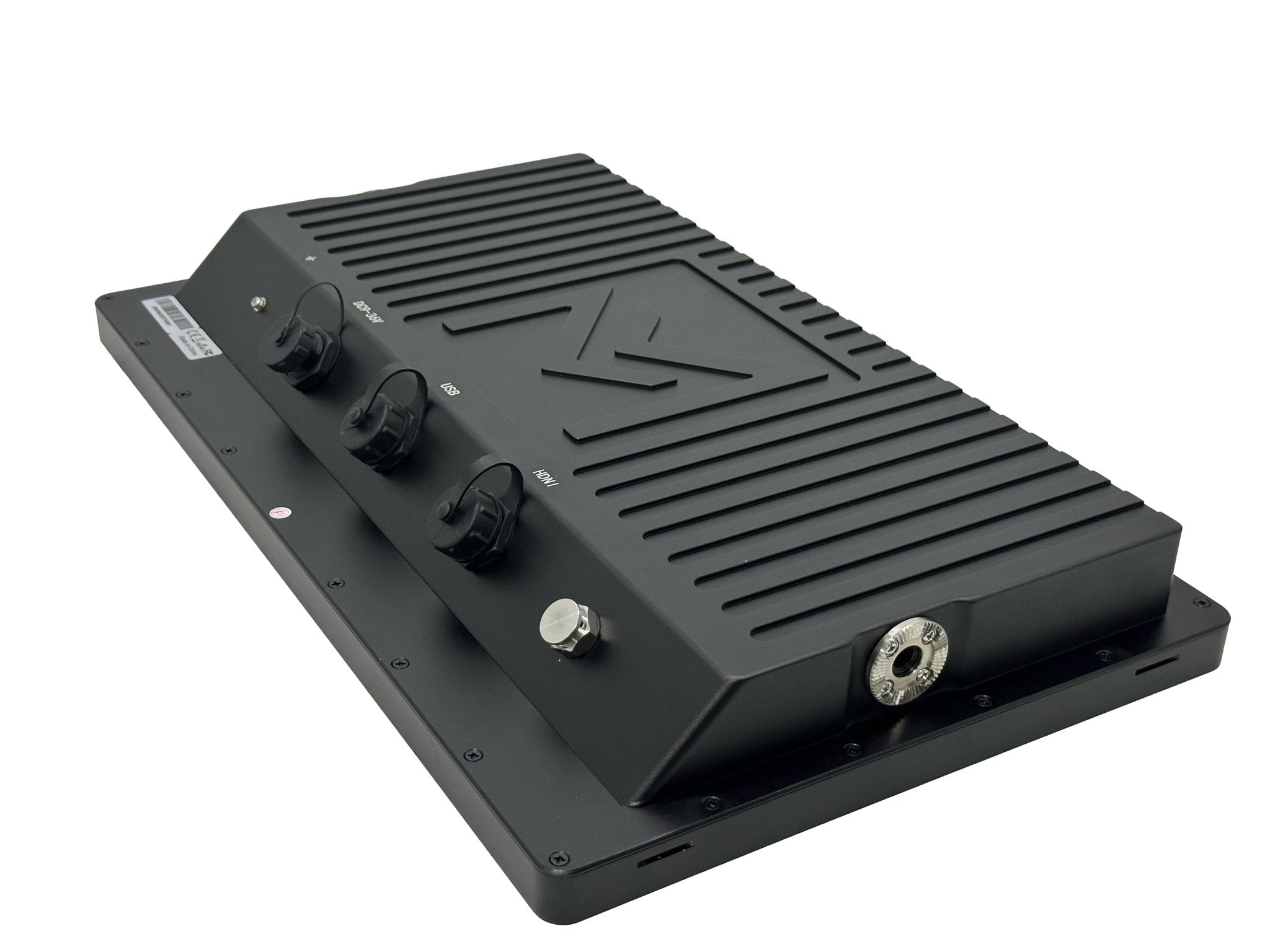

True Marine-Grade Construction – All aluminum housing, IP67 waterproof rating, fanless cooling, and sealed ports for harsh environments.
-
Smart Brightness Control – Automatic light sensor with manual override for perfect visibility day or night.
-
Multiple Power Options – Operates from 9–36V DC with built-in protection and a 5A fuse requirement.
-
Universal Compatibility – HDMI and USB-A connections integrate easily with Garmin and other compatible head units.
-
Low Power Consumption – Efficient operation with <45W draw for extended run times.
-

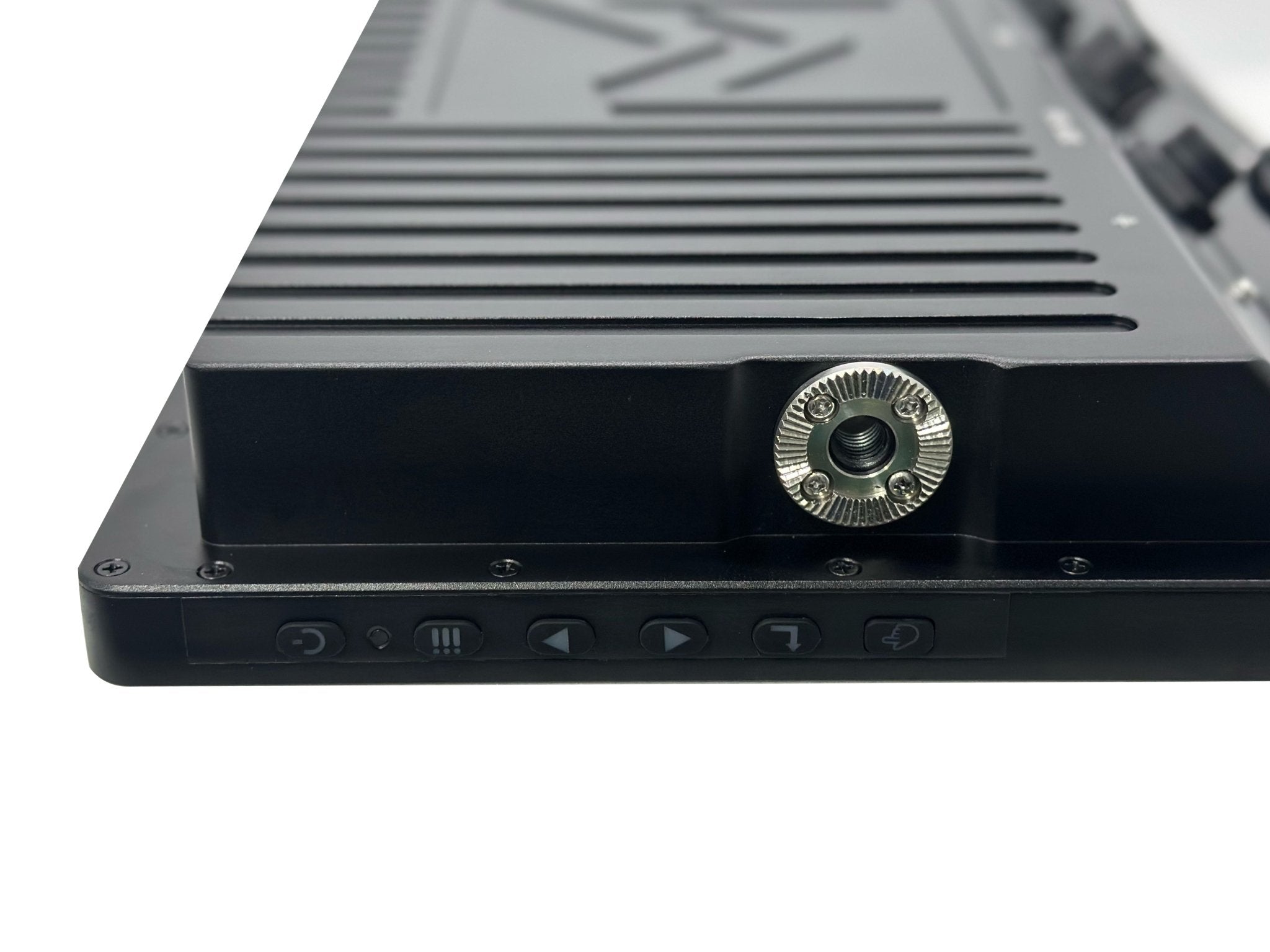

Touch Lockout Button – Toggle touch functionality on or off for cleaning or rainy conditions.
⚓ Installation & Mounting
The Focus 16 mounts securely into its precision cradle for adjustable tilt and stable operation in rough water.
Follow all installation safety guidelines, including proper fuse rating, grounding, and cable alignment to protect against damage.
For best results, install on land or while docked, and route all HDMI and USB cables carefully to avoid strain or sharp bends.
📊 Technical Specifications
| Category | Specification |
|---|---|
| Panel Size | 15.6” |
| Resolution | 1920 × 1080 (Full HD) |
| Aspect Ratio | 16:9 |
| Brightness | 1500 nits |
| Touch Type | 10-point capacitive |
| Power Input | 9–36V DC (5A fuse required) |
| Power Consumption | Typical 2.8A / Max 3.5A |
| Connectivity | HDMI (IP67), USB-A (IP67) |
| Brightness Control | Auto-sensing / manual |
| Construction | Fanless, IP67 waterproof |
| Surface Treatment | Anti-reflective, 7H hardness |
| Net Weight | 9.57 lbs (4.34 kg) |
| Operating Temp | -20°C to 70°C (-4°F to 158°F) |
| Humidity | Up to 100% |
🧭 Compatible Systems
Garmin GPSMAP® (mirror and touch)
8610 | 8612 | 8616 | 8412 | 8416 | 1623 | 1643 | 8700 box
9013 | 9213 | 9017 | 9217 (waterproof cables in production)
9010 | 9210 | 8410 | 8610 | 1223 touch | 1243 touch (different aspect ratio)
*9000 series usb c cables are currently in production
Garmin Echomap Ultra 2
162 | 166 (Mirror Only – No Touch Control)
Humminbird Apex
13 | 16 | 19 (Mirror Only- No Touch Control)
Lowrance (yes call us to learn how to now)
Compatible units Coming Soon
🔧 Warranty
The Monster Monitor Focus Series is backed by a 2-Year Limited Warranty, covering defects in materials and workmanship under normal use.
Damage due to improper installation, misuse, or forced connections is not covered.
For service or claims: refer to warranty page or email/call us @
📧 monstermarinemonitors@gmail.com
📞 501-463-6545
(Subject line: Warranty Concern – Order #)
🟠 In the Box
-
Monster Monitor Focus 16 Display
-
IP67 HDMI Cable (26')
-
IP67 USB Cable (26')
-
Power Cable with Locking Ring (15')
-
Mounting Cradle & Hardware
-
User Manual & Quick Start Guide
💡 Why Choose Monster Monitor

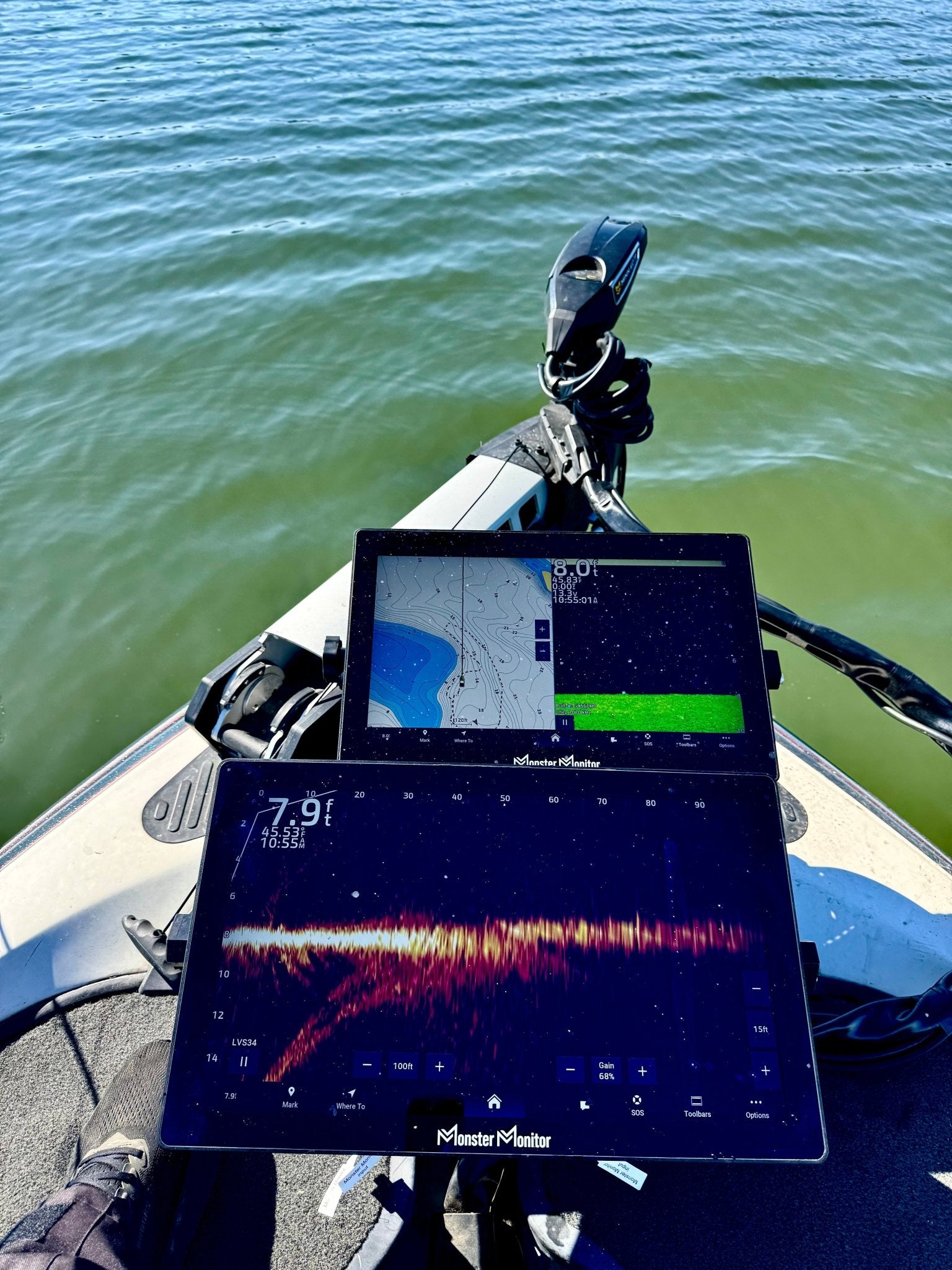

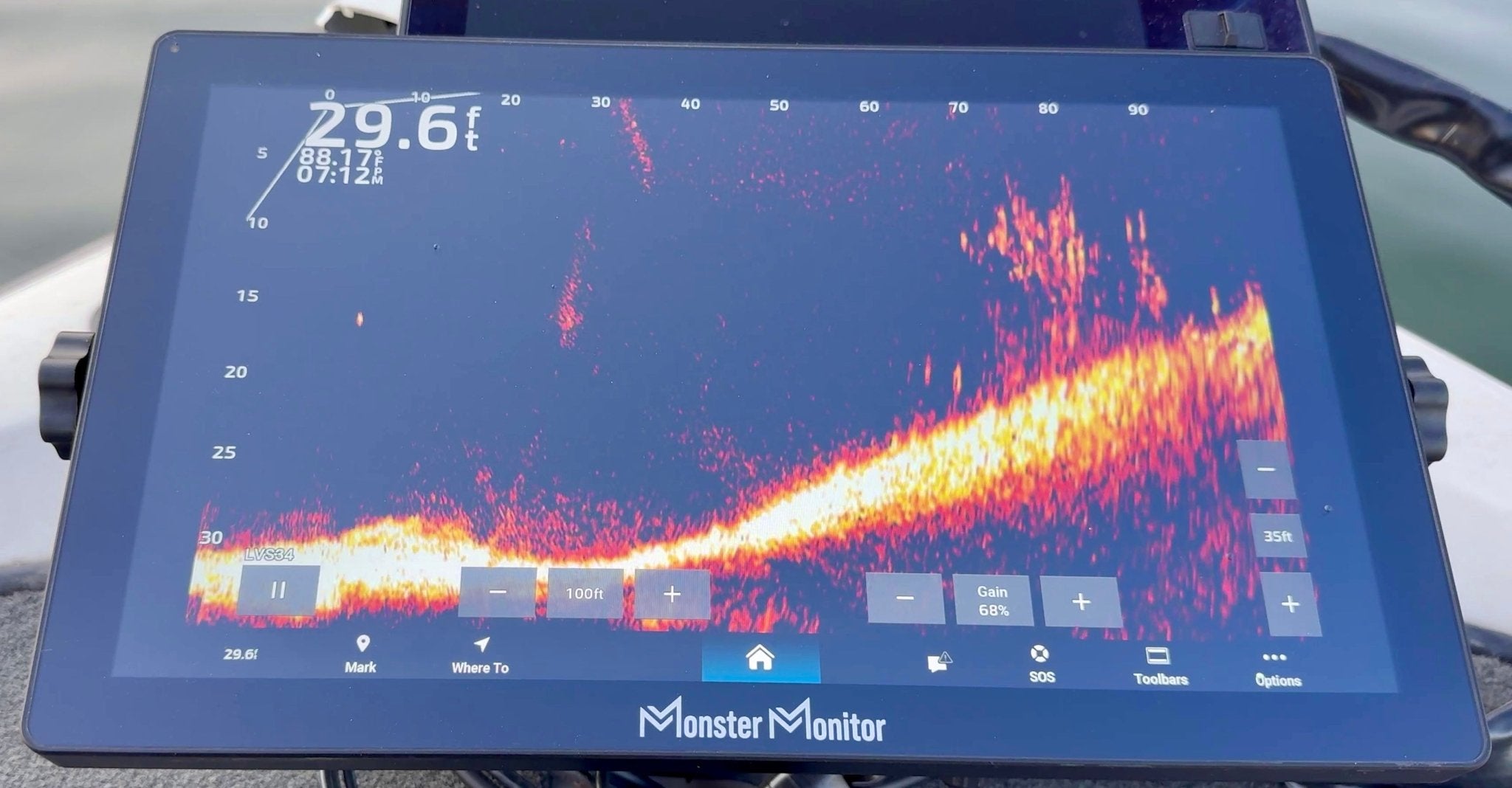

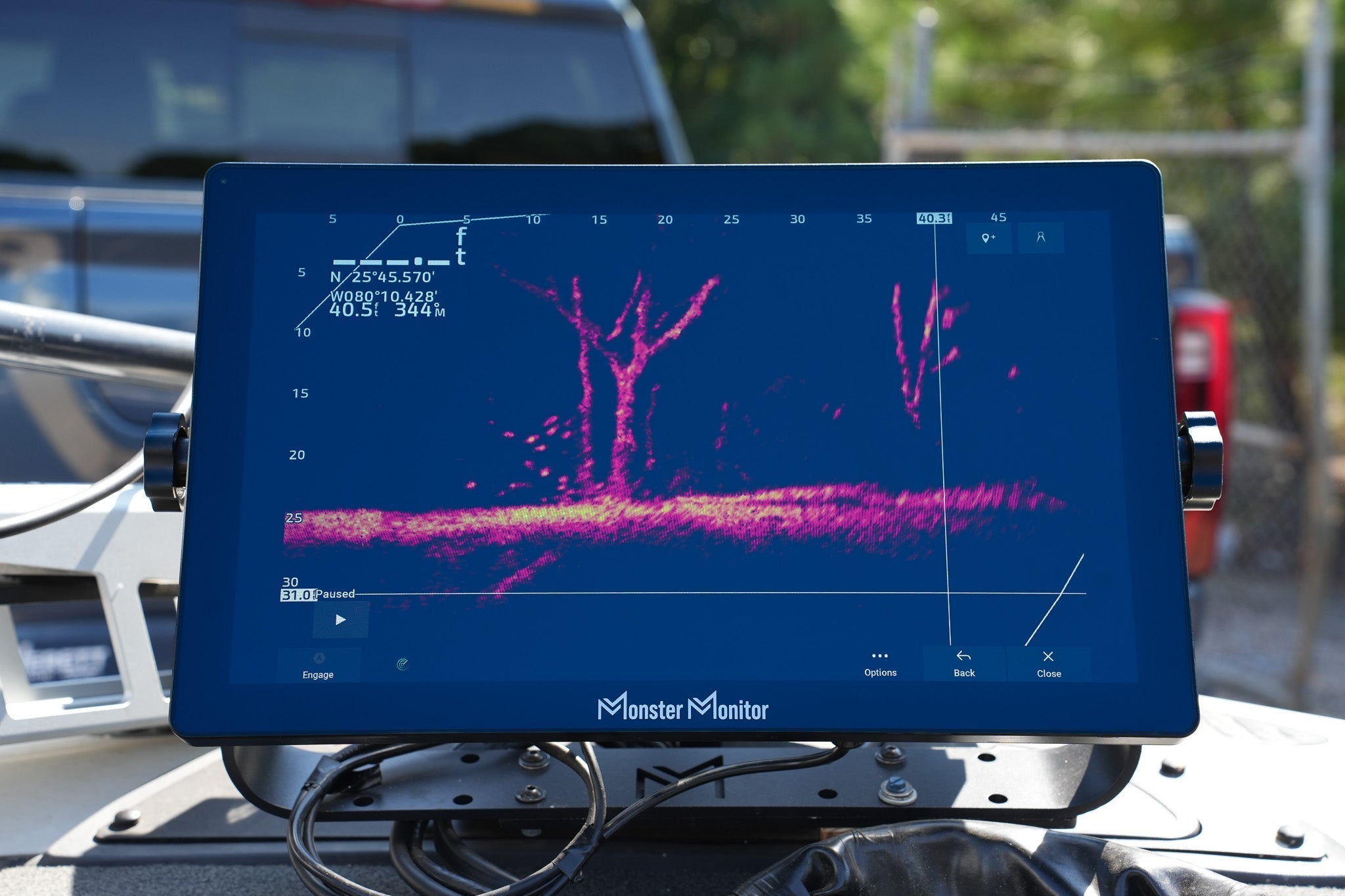

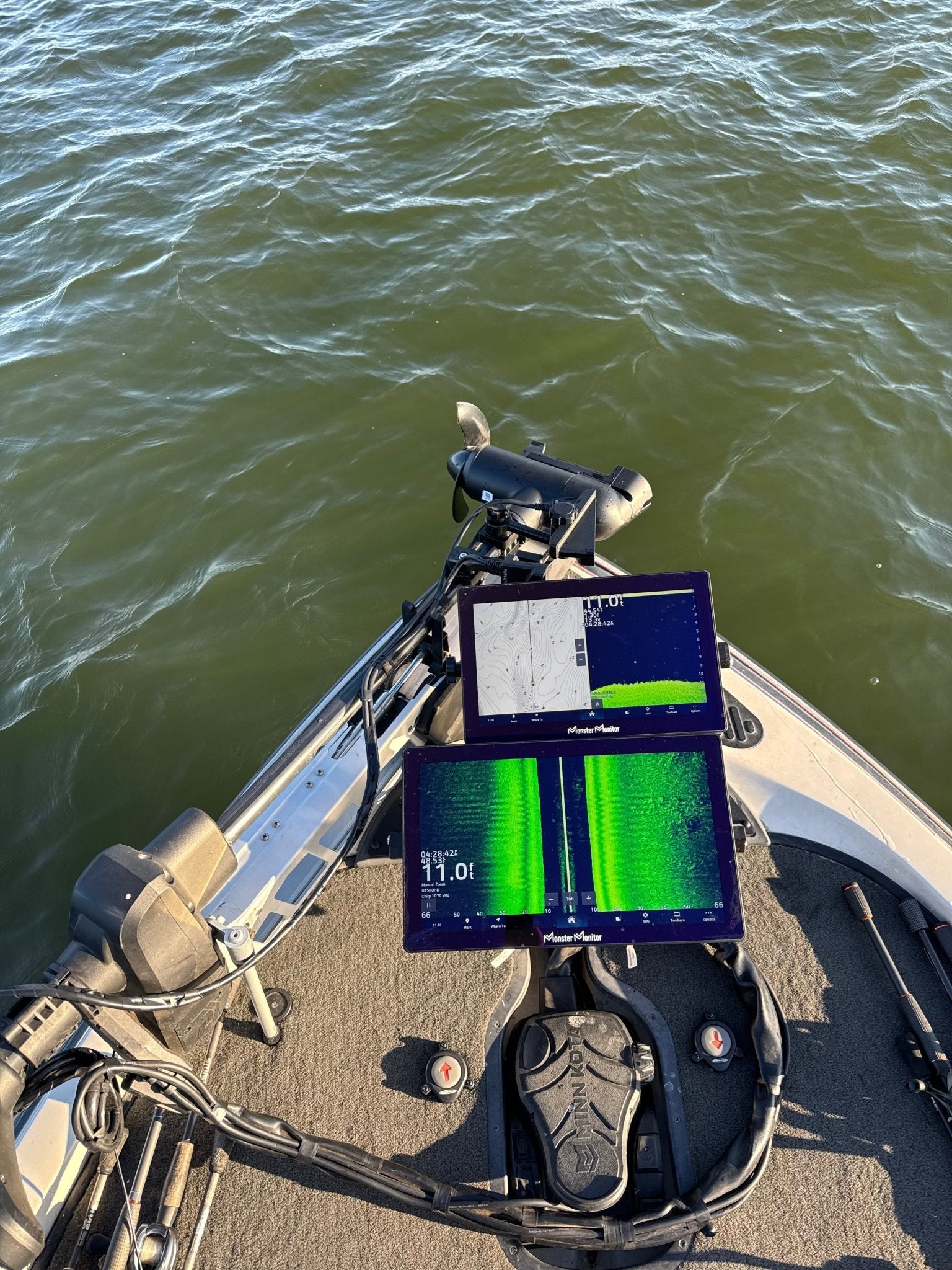

Built specifically for Forward-Facing Sonar (FFS) optimization, the Focus 16 enhances target separation and sonar image detail with unmatched clarity and speed.
Whether scanning structure, chasing suspended fish, or running offshore, the Focus 16 delivers the precision visibility you need to stay ahead.
Stop Guessing. Start Seeing.
