Garmin GPS 24xd GPS Antenna w/Heading Sensor f/NMEA 2000 Network - Black [010 - 02316 - 20], Accessories, Garmin, , , at Festive Water Paddlesports

Garmin GPS 24xd GPS Antenna w/Heading Sensor f/NMEA 2000 Network - Black [010-02316-20]

$364.99 USD$0.00 USD
Authorized Garmin Dealer
Kayak shipping available, rates calculated at checkout.
Questions? Call our experts at 404-422-9569.
Logo for GOVX ID, a service used to verify military, first responder, nurse or teachers to qualify them for discounts

Discount available for Military, First Responders, Medical Workers and Teachers

Quantity

GPS 24xd GPS Antenna with Heading Sensor for NMEA 2000 Network - Black

The GPS 24xd position receiver and antenna give users precise location with multi-band GNSS and heading accuracy even at slow speeds.

Features:

  • Navigate to more locations with expanded GNSS support
  • Get high-sensitivity tracking with a fast GPS update rate
  • Accurately pinpoint, regardless of speed
  • It’s water-resistant (IPX7) to withstand the elements
  • Install it easily with multiple mounting options
  • The antenna is compatible with NMEA 2000® devices

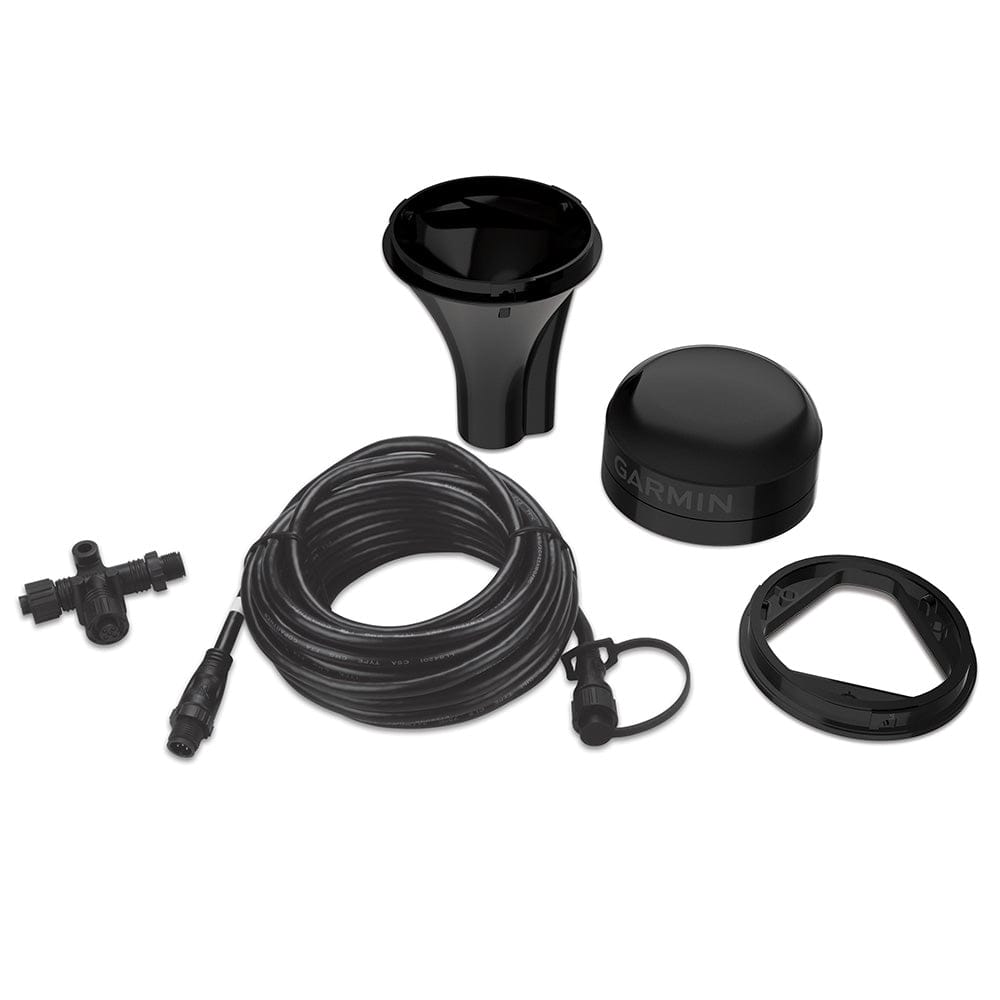

In the Box:

  • GPS 24xd NMEA 2000®
  • Pole mount
  • Surface mount
  • NMEA 2000 backbone/drop cable (6 meters)
  • NMEA 2000 T-connector
  • Documentation

Specifications:

  • Color: Black
  • Dimensions (D x H): 3 19/32" x 1 15/16" (91.6 mm x 49.5 mm)
  • Weight: 7.1 oz (201 g), white; 6.2 oz (176 g), black
  • Cable Length: 19 ft 8" (6 m)
  • Temperature Range: -22° to 176° F (-30° to 80° C), white; -22° to 149° F (-30° to 65° C), black
  • Case Material: Fully gasketed, high-impact plastic alloy; waterproof to IPX7
  • Compass-Safe Distance: 5.9" (150 mm)
  • Power Source Input: 9-32 Vdc
  • Input Current: 150 mA at 12 Vdc
  • NMEA 2000 Load Equivalency Number (LEN): 3 (150 mA)
  • Position Accuracy, Typical Marine Use: < 1-meter CEP, < 3 meters, 95%

Specifications:

  • Type: Antennas
  • Box Dimensions: 7"H x 7"W x 7"L WT: 2.05 lbs
  • UPC: 753759331214
