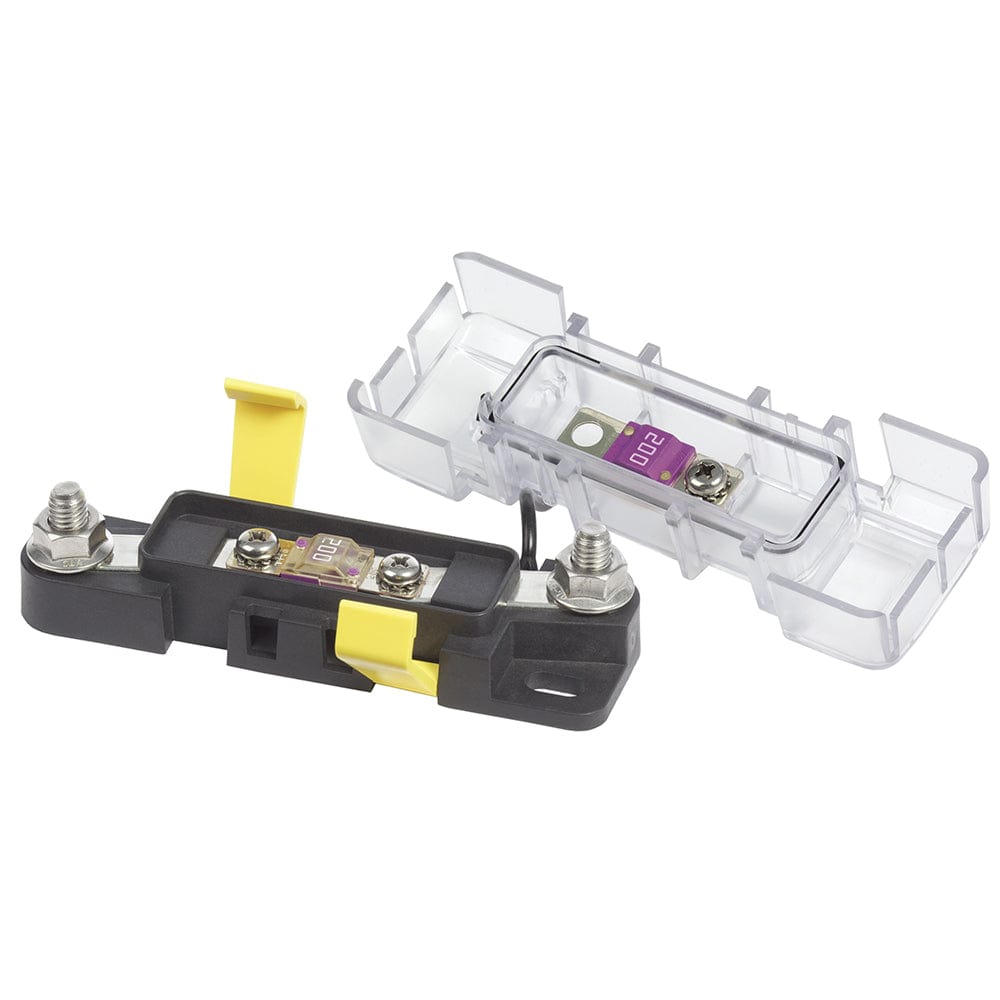

Blue Sea 7720 MIDI/AMI Safety Fuse Block [7720]
MIDI or AMI Safety Fuse Block
- Ignition protected for installation aboard gasoline or diesel powered boats
- Sealed cover protects fuses from the harsh marine environment
- Insulating cover satisfies ABYC/USCG insulation requirements
- Cover breakouts allow wire access in any direction
- 200A maximum with 2/0 cable
- Accepts Blue Sea Systems Square Format standard or custom label
- Fuses sold separately
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Specifications:
- Fuse Type: MIDI/AMI
- Type: Fuse Blocks
- Box Dimensions: 2"H x 4"W x 8"L WT: 0.49 lbs
- UPC: 632085077204
Brochure (pdf)
