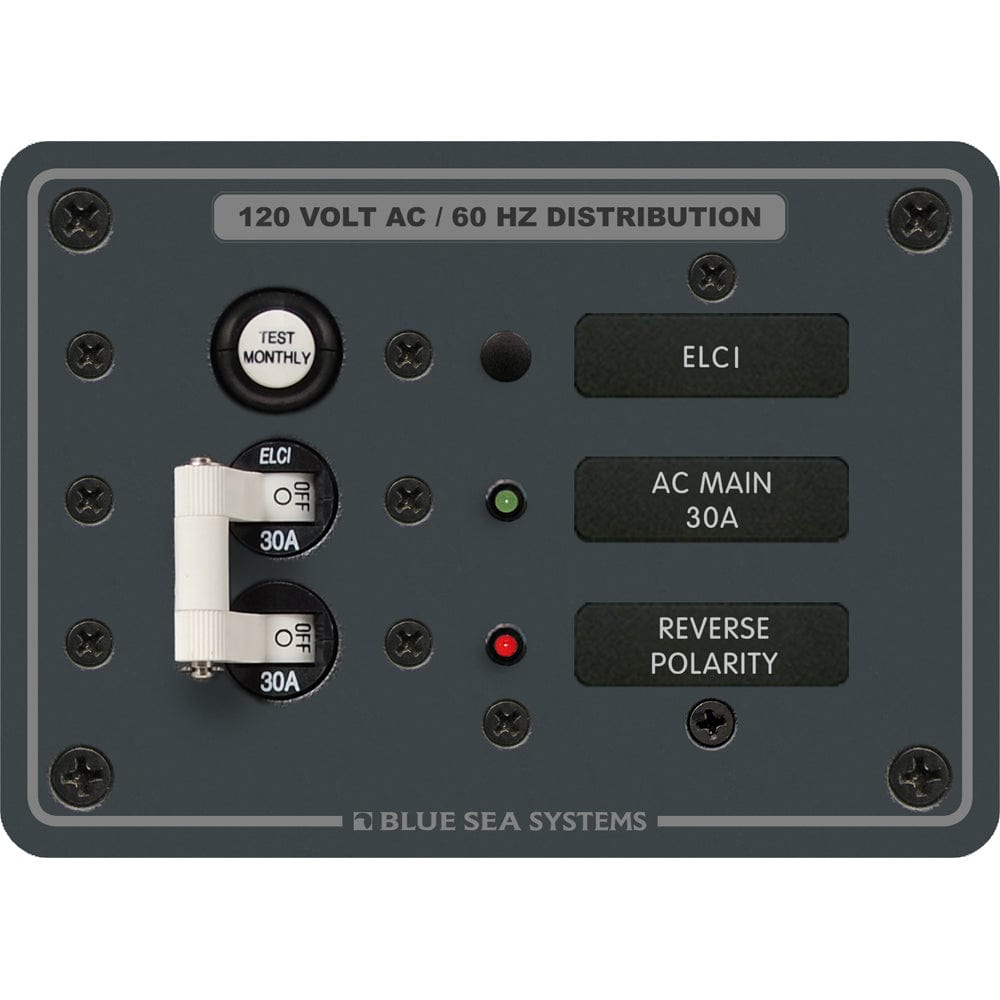

ELCI Main 30A Double Pole

• One 30A AC ELCI Main Residual Current Circuit Breaker, leakage trip amperate - 30 mA

• ELCI provides overcurrent and leakage protection per ABYC E-11 for whole boat shore power protection

• Red " Reverse Polarity" LED

• All circuit label positions are backlit

• "ON" indicating LEDs

Specifications
Nominal Voltaget120V AC
Leakage Trip Ampst30mA
Heightt5.25" (133.35mm)
Widtht 3.75" (95.25mm)
Deptht3.50" (88.9mm)
Weightt2.25lb (1.02kg)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• AC/DC: AC
• Voltage: 120v
• Box Dimensions: 5"H x 9"W x 12"L WT: 2 lbs
• UPC: 632085081003

Quick Guide (pdf)
Owner's Manual (pdf)
